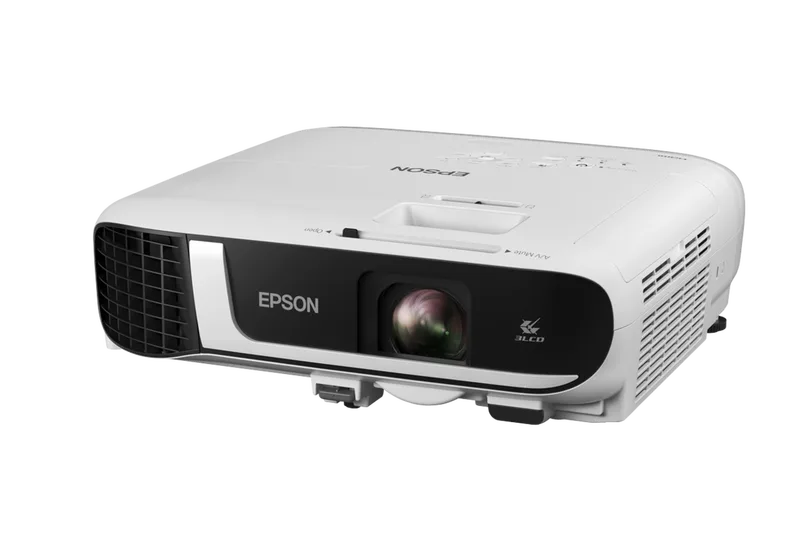

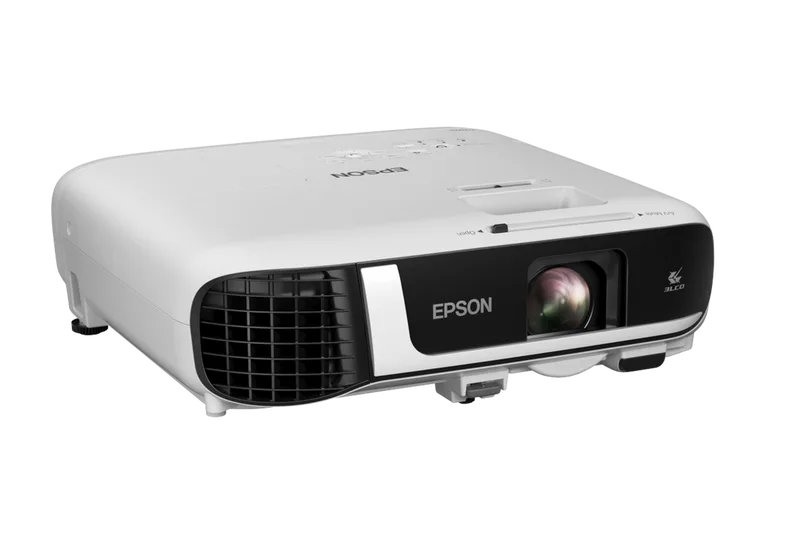

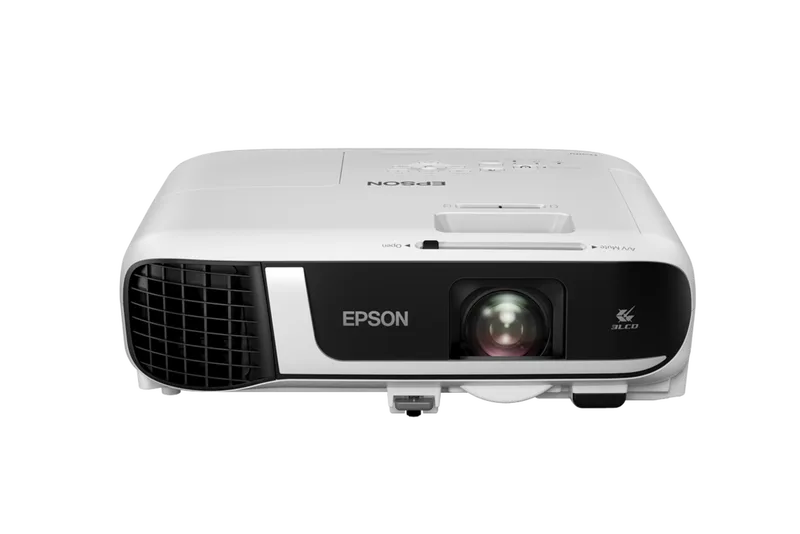

Epson EB-FH52 XGA Projector
Large, sharp, and powerful viewing experience.
Features and Benefit
With 1.2x optical zoom, the Full HD EB-FH52 projector may be installed in almost any space. Epson projectors feature high Color Brightness and impressive colour accuracy. In addition to having Full HD resolution, the EB-FH52 has 4,000 lumens of colour and white brightness2. Maintenance expenses are reduced by its long-lasting light, which operates in ECO Mode3 for up to 12,000 hours. The simultaneous display of numerous displays is possible with optional wifi connectivity.
- Projection System: 3LCD, 3-chip technology
- Native Resolution: 1920 x 1080(Full HD)
- Color Brightness: 4,000 lumens
- White Brightness: 4,000 lumens
- Specifications
- Brochure
- Video
|
Projection Technology: |
Projection Technology: RGB liquid crystal shutter projection system (3LCD) |
|
Brightness2: |
White Light Output (Normal/Eco): 4,000 lm Colour Light Output: 4,000 lm |
|
Connectivity: |

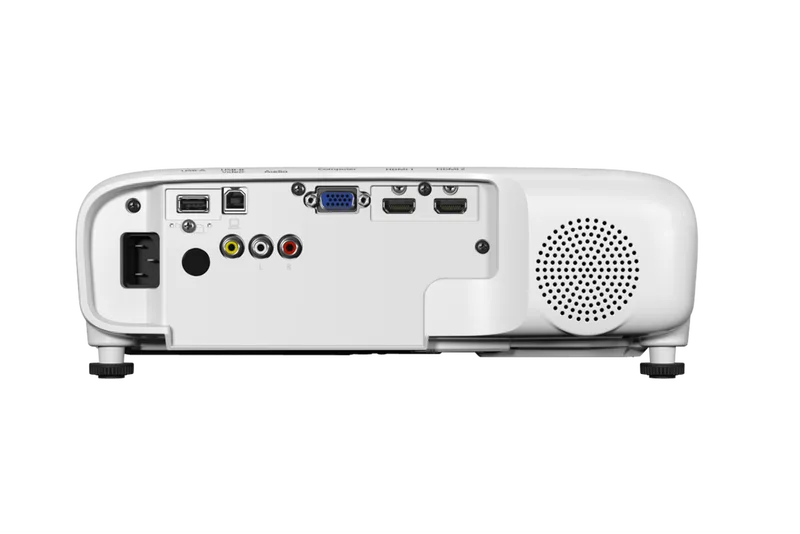

USB Interface: USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings) USB Type B: 1 (For Firmware Update, Copy OSD Settings) Network: Wireless: Built-In Analog Input: Composite: 1 RCA D-Sub 15pin: 1 Digital Input: HDMI: 2 Audio Input: 2RCA (White & Red): 1 |
|
Screen Size (Projected Distance): |
Standard Size: Tele: 30” to 300” [1.42 to 14.41 m] Wide: 30” to 300” [0.87 to 8.88 m] |
|
Operating Temperature: |
Operating Temperature: Low Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F> (20% – 80% Humidity, No Condensation) |
|
Operating Altitude: |
Operating Altitude: 0– 3,048 m <0 – 10,000 ft> |
|
Start-Up Period: |
Start-Up Period: Up to 6 seconds, Warm-up Period: 30 seconds |
|
Cool Down Period: |
Cool Down Period: Instant Off |
|
Direct Power On/Off: |
Direct Power On/Off: Yes |
|
Dimension Excluding Feet (W x H x D): |
Dimension Excluding Feet (W x H x D): 309 x 90 x 282 mm |
|
Weight: |
Weight: Approx. 3.1 kg |
|
Air Filter: |
Type: High Efficiency Filter Maintenance Cycle: 6,000 / 20,000 hours*3 |
|
Fan Noise: |
Fan Noise (Normal / Eco): 37dB / 28dB |
|
Power: |
Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz |
|
Projectors Facets: |
Resolution, Projectors Facets: FullHD Contrast Ratio, Projectors Facets: 16,000:1 Brightness Range Lumens, Projectors Facets: 2000 Features, Projectors Facets: Wifi Screen Mirroring Quick Corner Laser / Lamp, Projectors Facets: Lamp |
|
Contrast Ratio: |
Contrast Ratio: 16,000:1 |
|
Geometric Correction: |
Vertical/Horizontal Keystone: ±30° / ±30° (Auto Vertical Keystone only) Quick Corner: Yes |
|
Optional Wireless Specifications: |
Supported Speed for Each Mode: IEEE 802.11a (5GHz): 54Mbps*2 |
|
Specifications of Main Parts: |
LCD: Size: 0.59” (C2fine) Native Resolution: WXGA (1280 x 800) Lightsource: Type: 210W UHE Life (Normal / Eco): 6,000 / 12,000 hours Aspect Ratio: 16:10 Projection Lens: Type: Optical Zoom (Manual) / Focus (Manual) Zoom Ratio: 1 – 1.2 Focal Length: 16.90 – 20.28 mm Throw Ratio: 1.30 – 1.56 (Wide to Tele) F-Number: 1.49 – 1.72 |
|
Wireless LAN – Built-In: |
Supported Speed For Each Mode Infrastructure: IEEE 802.11n (2.4GHz): 72.2 Mbps*2 IEEE 802.11a (5GHz): 54Mbps*2 IEEE 802.11b (2.4GHz): 11 Mbps*2 IEEE 802.11g (2.4GHz): 54 Mbps*2 IEEE 802.11n (5GHz): 150 Mbps*2 Wireless LAN Security: Infrastructure: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast |
