Product > Document Scanner > Business Card Scanner > Plustek S602
Business Card Scanner

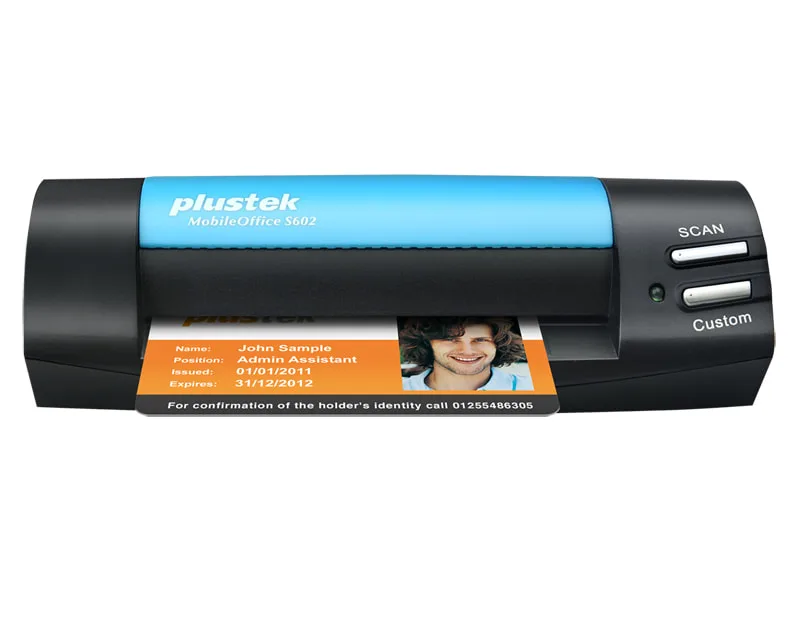

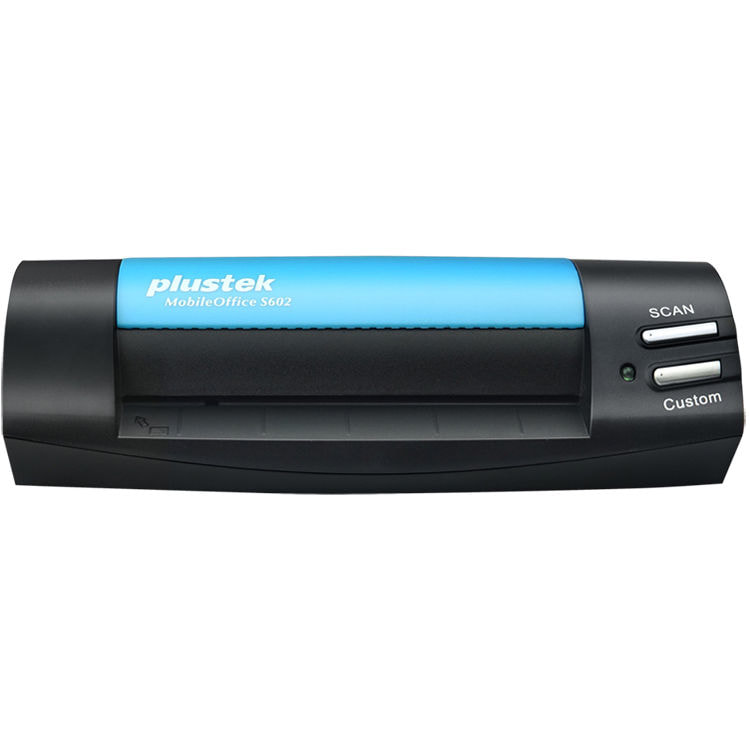

Plustek MobileOffice S602
Features and Benefits
Business Card Scanner Plustek MobileOffice S602 is a small, commercial duty, USB powered ID and card scanner. It scans drivers’ licenses, insurance cards, social security cards, membership cards such as credit and healthcare benefit account cards. Card, receipt or document as small as 1.3" x 1.7" is easily scanned. The MobileOffice S602 also offers high-resolution scanning of 4" x 6" color photos. The built in software and image processing enables scanning and PDF creation at the touch of a button. TWAIN and WIA drivers ensure compatibility with thousands of healthcare and ID card reading systems.
- LED Light Source
- Compact and Lightweight Design
- USB Powered
- Business Card Management
Specification
- General
|
Image Sensor |
CIS |
|
Light Source |
LED |
|
Optical Resolution |
1200 dpi |
|
Hardware Resolution |
1200 x 1200 dpi |
|
Scan Modes |
Color: 48-bit input, 24-bit output Grayscale: 16-bit input, 8-bit output B/W: 1-bit output |
|
Scanning Speed |
5.5 sec (Color Mode, 300 dpi, A6 |
|
Scanning Area (W x L) |
Maximum: 104.9 x 500 mm (4.13" x 19.69") Minimum: 33 x 43 mm (1.3" x 1.7") TWAIN support 104.9 x 500 mm (4.13” x 19.69”) |
|
Acceptable Paper Weight (Thickness) |
Paper: 50 g/㎡ to 120 g/㎡ Plastic card: Non-Embossed up to 0.76 mm |
|
Daily Duty Scan ( Sheets ) |
800 |
|
Action Button |
Scan, Custom |
|
Power Supply |
USB Power: 5V / 0.5A |
|
Interface |
USB 2.0 |
|
Pad Lifetime (Scans) |
20000 |
|
Action Button |
PDF, BCR, Scan |
|
Power Supply |
AC adapter: 24 Vdc/ 0.75 A |
|
Interface |
USB 2.0 |
|
Net Weight |
0.19 Kgs (0.42 Lbs) |
|
Dimensions (W x D x H) |
174.5 x 60.5 x 38.5 mm (6.87" x 2.38” x 1.52”) |
|
Protocol |
TWAIN compliant |
|
OS |
Window 7 / 8 / 10 |
|
Hardware Requirements |
Pentium® IV 2.4 GHz processor DVD-ROM Drive One available USB 2.0 Port 1GB RAM (2GB or higher recommended) 2GB free HDD space (3GB or larger recommended) |
Download Brochure Here!
