Canon Production Scanner

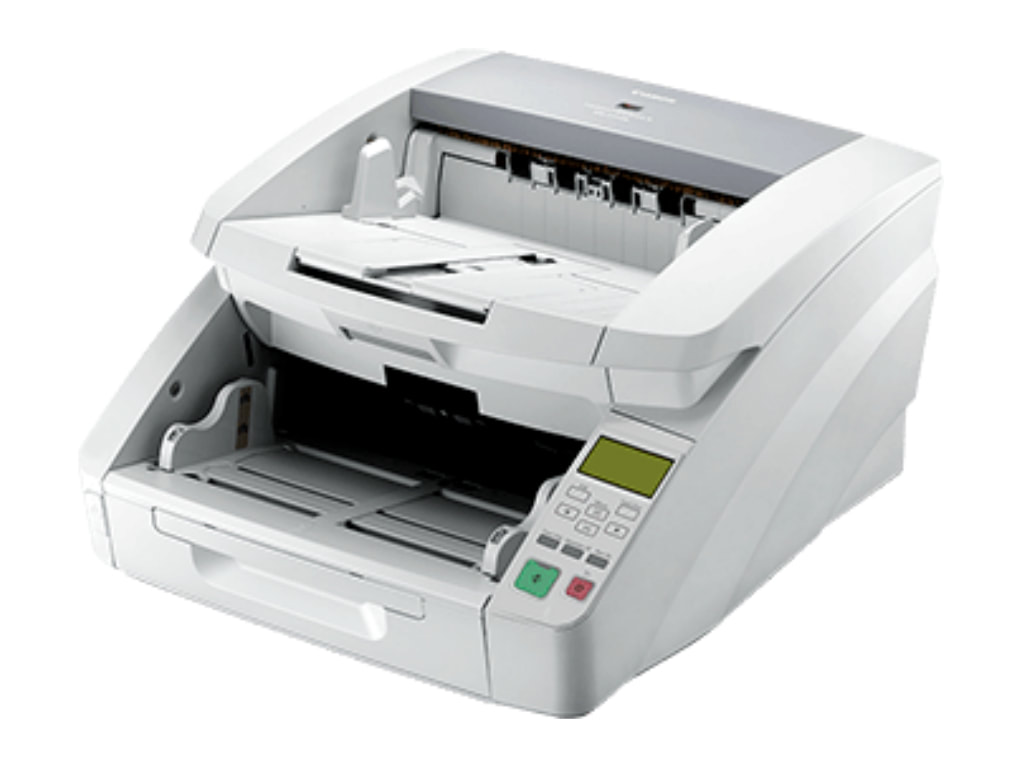

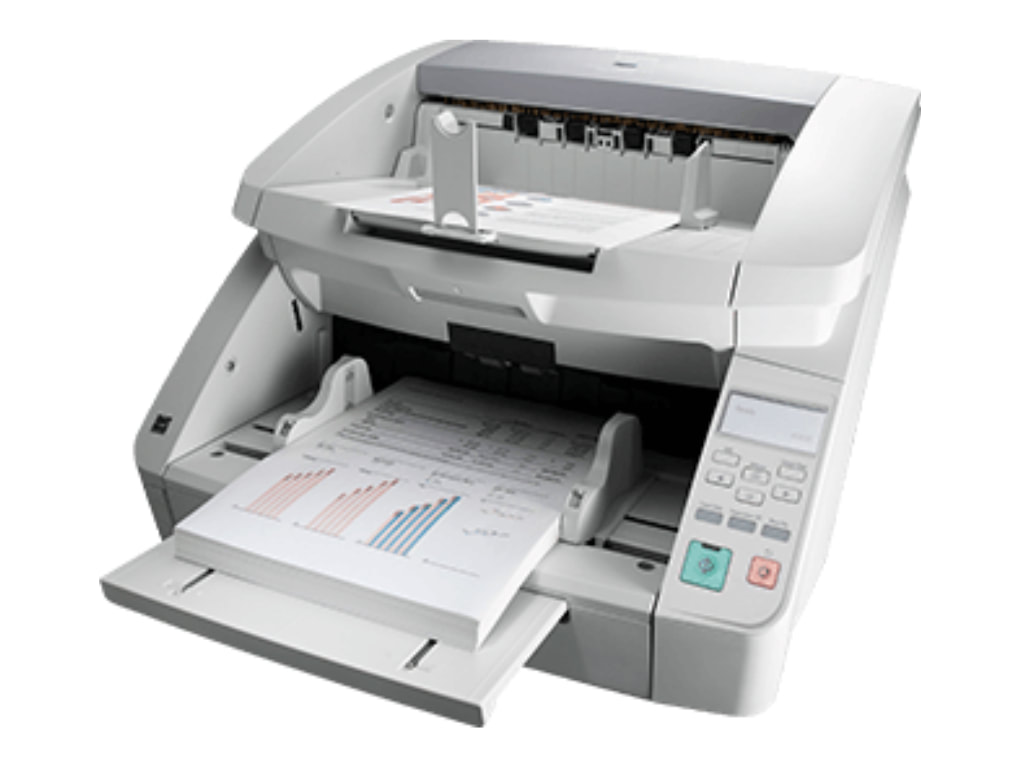

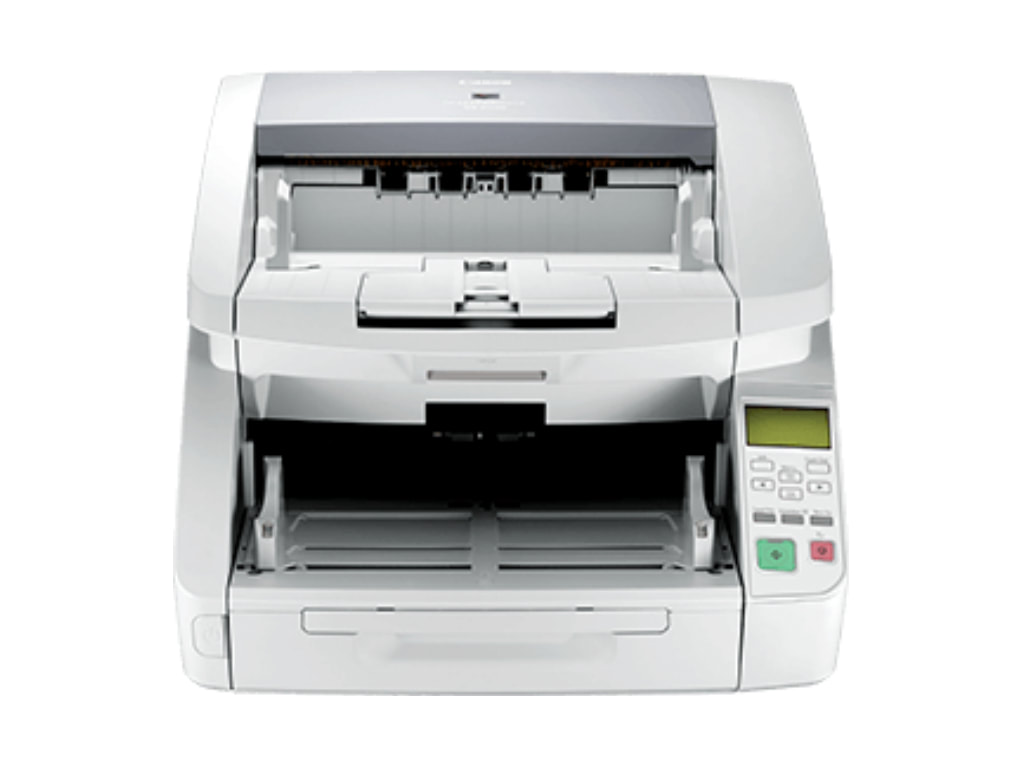

Canon DRG1100
Features and Benefits
High-speed, high-quality A3 production scanner for dedicated scanning applications and mission-critical jobs. Perfect for centralised or remote offices and specialist scanning bureaus.
- High-speed colour scanning up to 200ipm
- 500-sheet automatic document feeder
- Reliable feeder for handling various document types
- Front-feeding and U-turn path for convenient operation
- Robust design for heavier workloads
- High-quality image processing
Specification
- General
- Scanning Document
- Scan
|
Bundled Software |
CapturePerfect, Job Registration Tool, VRS |
|
Dimensions (W x D x H) |
All tray and extensions closed: 480 × 535 × 315 mm All tray and extensions open: 480 × 723 × 390 mm |
|
Interface |
Hi-Speed USB 2.0 |
|
Operating Environment |
Temperature: 10 - 32.5°C Humidity: 20 - 80% RH |
|
Supported Operating System |
Windows |
|
Options/ Consumables |
Imprinter Unit, Barcode Module, 2D Code Module, Flatbed Scanner Unit 102, Flatbed Scanner Unit 201, Patchcode Decoder, Exchange Roller Kit, Separation Pad |
|
Power |
AC220-240V |
|
Power Consumption |
Scanning: 94.3 W, Sleep Mode: 1.7 W, Power Turned OFF: 0 W |
|
Weight |
Approx. 22.8kg |
|
Feeding Method |
Automatic or manual |
|
Document thickness - Plain Paper |
Normal feeding: Weight: 20 – 209 g/m2 Thickness: 0.04 – 0.25 mm Non separation feeding: Weight: 20 – 255 g/m2 Thickness: 0.04 – 0.30 mm |
|
Document thickness - Postcard |
128 – 255 g/m2 0.15 – 0.3 mm |
|
Document thickness - Business Card |
128 – 255 g/m2 0.15 – 0.3 mm |
|
Feeding Capacity |
500 sheets |
|
Document size - Plain Paper (A4/LTR) |
Width: 50.8 –305 mm, Length: 70 – 432 mm |
|
Document size - Long Document Mode |
Up to 3,000 mm |
|
Document size - Postcard |
Width: 89 – 108 mm, Length: 127 – 152 mm |
|
Document size - Business card |
Width: 51 – 55 mm, Length: 85 – 91 mm (Vertical feeding only) |
|
Light source |
LED (red, green and blue) |
|
Maximum Resolution |
600 dpi |
|
Scan Resolution |
150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi |
|
Scanner Element |
3-line CIS |
|
Scanner Type |
Desktop sheet-fed scanner |
|
Scanning Modes |
Black and White, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II, 256-level Grayscale, 24-bit Colour |
|
Scanning Side |
Simplex / Duplex |
|
Scanning speed |
DR-G1110, A4 / LTR, Portrait, 200dpi: Black and White: 75ppm (simplex) / 150ipm (duplex) Grayscale: 75ppm (simplex) / 150ipm (duplex) Colour: 75ppm (simplex) / 150ipm (duplex) DR-G1130, A4 / LTR, Portrait, 200dpi: Black and White: 100ppm (simplex) / 200ipm (duplex) Grayscale: 100ppm (simplex) / 200ipm (duplex) Colour: 100ppm (simplex) / 200ipm (duplex) DR-G1110, A4, Landscape, 200dpi: Black and White: 100ppm (simplex) / 200ipm (duplex) Grayscale: 100ppm (simplex) / 200ipm (duplex) Colour: 100ppm (simplex) / 200ipm (duplex) DR-G1130, A4, Landscape, 200dpi: Black and White: 130ppm (simplex) / 260ipm (duplex) Grayscale: 130ppm (simplex) / 260ipm (duplex) Colour: 130ppm (simplex) / 260ipm (duplex) *Actual scanning speed may vary depending on your system configuration and PC |
|
Suggested Daily Volume (Scans) |
25,000 (DR-G1100); 30,000 (DR-G1130) |
