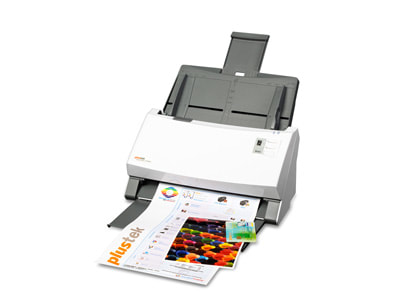

Scan Document To Pdf Scanner
Plustek SmartOffice PS306U
Features and Benefits
Scan Document To Pdf Scanner Plustek SmartOffice PS3060U is a 30-page duplex grayscale document scanner. Using an ultrasonic power failure detection system, it ensures that all your critical documents are digitized. The SmartOffice PS3060U Document Scanner is designed to provide the image quality, paper handling and reliability needed by the most demanding business users, at a competitive price for SMEs and home-based businesses. The small size and footprint of the PS3060U makes it ideal for small businesses, offices and receptions, as well as for portable scanning tasks.
- Intelligent Misfeed Function
- Versatile Document Handling
- Easy to Use
- Exceptional Productivity
- Auto Threshold
- Auto Rotate
- Auto Crop & Deskew
- Auto Mode
- Multi-Image Output
- Color Dropout
- Blank Page Removal
Specification
- General
|
Image Sensor |
CIS x 2 |
|
Light Source |
LED |
|
Optical Resolution |
600 dpi |
|
Hardware Resolution |
600 x 600 dpi |
|
Scan Modes |
Color: Input 48 bit; Output 24 bit Grayscale: 16 bit input; 8 bit black & white output : 1 bit |
|
ADF Capacity |
1. 50 sheets (A4 / Letter, 70 g / ㎡ or 18 Lbs), maximum thickness less than 5mm (0.2 ") 2. 20 sheets (business card) 3. Plastic card, maximum thickness less than 1.2 mm Note: The maximum ADF capacity varies, depending on the weight of the paper. |
|
Scanning Speed (ADF) |
30 ppm / 60 ipm (Greyscale, 200 dpi, A4) 30 ppm / 60 ipm (Black & White, 200 dpi, A4) 20 ppm / 40 ipm (Color, 200 dpi, A4) Note: Results may vary by depending on your scanning program, the computer processor and the amount of system memory. |
|
Scanning Area (W x L) |
Maximum: 216 x 5080 mm (8.5 "x 200") Minimum: 13.2 x 13.2 mm (0.52 "x 0.52" |
|
Acceptable Paper Sizes (W x L) |
Maximum: 220 x 5080 mm (8.66 "x 200") Minimum: 63.5 x 50.8 mm (2.5 "x 2") |
|
Acceptable paper weight (thickness) |
50 to 105 g/㎡ (14 to 28 Lbs) |
|
Multiple Power Detection |
With Ultrasonic Technology |
|
Number of daily scanning (Pages) |
4,000 |
|
Roll Life (Scans) |
300,000 |
|
Packing Life (Scans) |
50,000 |
|
Scan action button |
3 buttons: Up, Down, Scan. 9 function keys. All customizable. |
|
Power Supply |
24 Vdc/0.75 A |
|
Interface |
USB 2.0 |
|
Weight |
1.66 Kgs (3.66 Lbs) |
|
Physical Dimensions (W x D x H) |
263 x 128 x 148 mm (10.36 "x 5.02" x 5.83 ") |
|
Protocols |
Compliant with TWAIN standard |
|
Bone |
Windows XP / Vista / 7/8/10 Mac OS X 10.8.x / 10.9.x / 10.10.x / 10.11.x / 10.12.x / 10.13.x / 10.14.x SANE LINUX for System Integrators. Please contact the local sales department. |
|
Material Requirements |
Pentium IV 2.4 GHz Processor DVD-ROM Drive A USB 2.0 port 1GB RAM (2GB recommended) 2GB free disk space (3GB recommended) |
Download Brochure Here!
