Auto Feed Photo Scanner

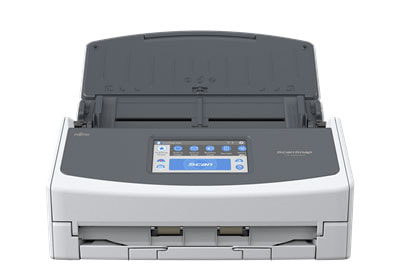

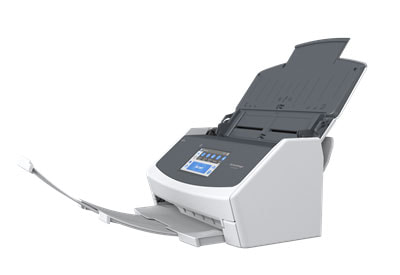

Fujitsu Ricoh ScanSnap iX1600
Features and Benefits
ScanSnap iX1600 is the evolved flagship model of the ScanSnap series, enabling scanning at higher speeds of 40 ppm/80 ipm (A4-size documents, color, 300dpi). It comes with the all-familiar 4.3-inch touch screen to bridge the gap where the physical and digital meets. The device comes with Wi-Fi connectivity, making it the perfect model for team sharing and combined use with cloud services.
- Intuitive 4.3-inch touch screen
- Wi-Fi (2.4 GHz) compatibility
- Speedy scans up to 40 ppm/80 ipm (A4-size documents, color, 300dpi)
- 50 sheets Automatic Document Feeder (ADF)
- For both individual and team use
- Ultrasonic Sensor and high-quality Brake Roller for stable feed
- Receipt Guide provides stable scanning for inconsistent paper sizes
- Streak Reduction producing clean images
- Best experiences with Scan Snap Home
- Conventional software Scan Snap Manager also available
- Connect to Scan Snap Cloud without the PC
Specification
- General
- Brochure
- Video
|
Product Name |
ScanSnap iX1600 (White / Black) |
|
Scanner Type |
ADF (Automatic Document Feeder) / Manual Feed, Duplex |
|
Scanning Speed*1 (A4 portrait) |
Auto mode Simplex / Duplex: 40 ppm Normal mode Simplex / Duplex: 40 ppm (Color / Grayscale: 150 dpi, Monochrome: 300 dpi) Better mode Simplex / Duplex: 40 ppm (Color / Grayscale: 200 dpi, Monochrome: 400 dpi) Best mode Simplex / Duplex: 40 ppm (Color / Grayscale: 300 dpi, Monochrome: 600 dpi) Excellent mode Simplex / Duplex: 10 ppm (Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi) |
|
Scanning Color Mode |
Color, Grayscale, Monochrome, Automatic (Color / Grayscale / Monochrome*3 detection) |
|
Image Sensor |
Color CIS x 2 (Front x 1, Back x 1) |
|
Light Source |
3 color LED (Red / Green / Blue) |
|
Optical Resolution |
600 dpi |
|
Document Size |
Normal Scan Minimum 50.8 x 50.8 mm (2 x 2 in.) Maximum 216 x 360 mm (8.5 x 14.17 in.) Manual Scan A3, B4, 279 x 432 mm (11 x 17 in.) Long Paper Scanning 3,000 mm (863 mm in 32-bit) Smart Device: 863 mm (Duplex), 1,726 mm (Simplex) |
|
Paper Weight (Thickness) |
40 to 209 g/m2 (11 to 56 lb) A8 or less: 128 to 209 g/m2 (34 to 56 lb) Cards: 0.76 mm or less (Compliant with the ISO7810 ID-1 type) (Includes embossed cards in landscape orientation) |
|
ADF Capacity |
50 sheets (A4, 80 g/m2 or 20 lb) |
|
Multifeed Detection |
Overlap detection (Ultrasonic sensor), Length detection |
|
Interface |
USB USB3.2 Gen1x1 / USB2.0 / USB1.1 (Connector Type: Type-B) Wi-Fi IEEE802.11a/b/g/n Frequency band: 2.4 GHz |
|
Wi-Fi Interface |
Connection Mode Access Point Connect Mode (Infrastructure mode)*9 Direct Connect Mode (Ad-hoc mode) Security WEP (64bit / 128bit), WPA (TKIP / AES), WPA2 (AES), WPA-PSK (TLIP / AES), WPA2-PSK (AES) Easy Installation WPS2.0 Rated Power (EIRP) (Others) 2.4 GHz: 11b: +19.0dBm / 11g: +20.5dBm / 11n/ac: +20.5dBm (20 / 40MHz) LCD 4.3 in. color TFT touch screen |
|
Power Requirements |
AC 100 to 240 V, 50/60 Hz |
|
Power Consumption |
Operating Mode 17 W or less Sleep Mode USB connected: 1.5 W or less Wi-Fi connected: 1.6 W or less |
|
Operating Environment |
Temperature 5 to 35 °C (41 to 95 °F) Relative Humidity 20 to 80% (Non-condensing) |
|
Environmental Compliance |
ENERGY STAR®, RoHS |
|
Dimensions (W x D x H) |
292 x 161 x 152 mm (11.5 x 6.3 x 6.0 in.) |
|
Weight |
3.4 kg (7.5 lb) |
|
Driver |
Scan Snap specific driver Windows®: Does not support TWAIN / ISIS® macOS: Does not support TWAIN |
|
Software |
Scan Snap Home (All-in-one document management software/driver) Scan Snap Manager (Conventional driver) Kofax Power PDF Standard (Windows) Kofax Power PDF Standard for Mac (Mac) ABBYY FineReader for ScanSnap |
|
Included Items |
Safety Precautions, AC cable, AC adapter, USB cable, Receipt Guide |
