High Speed A3 Document Scanner

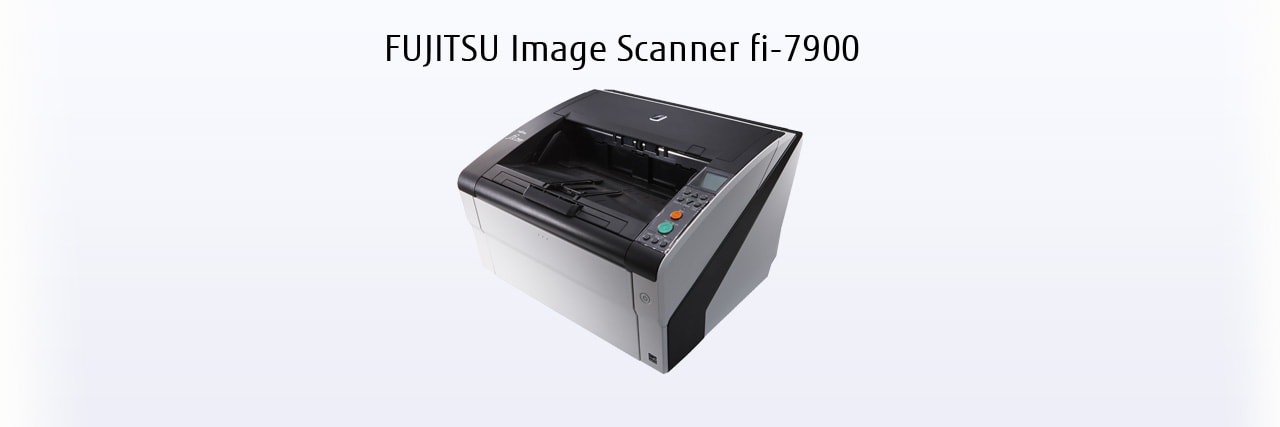

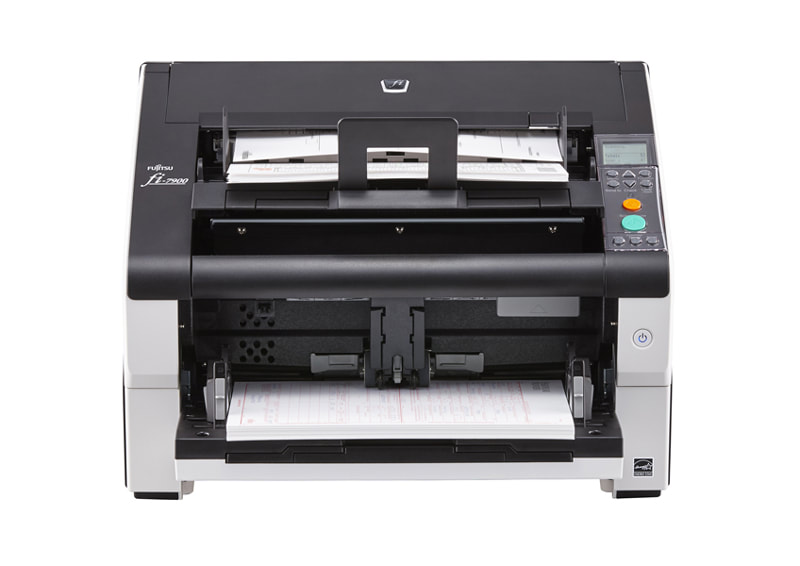

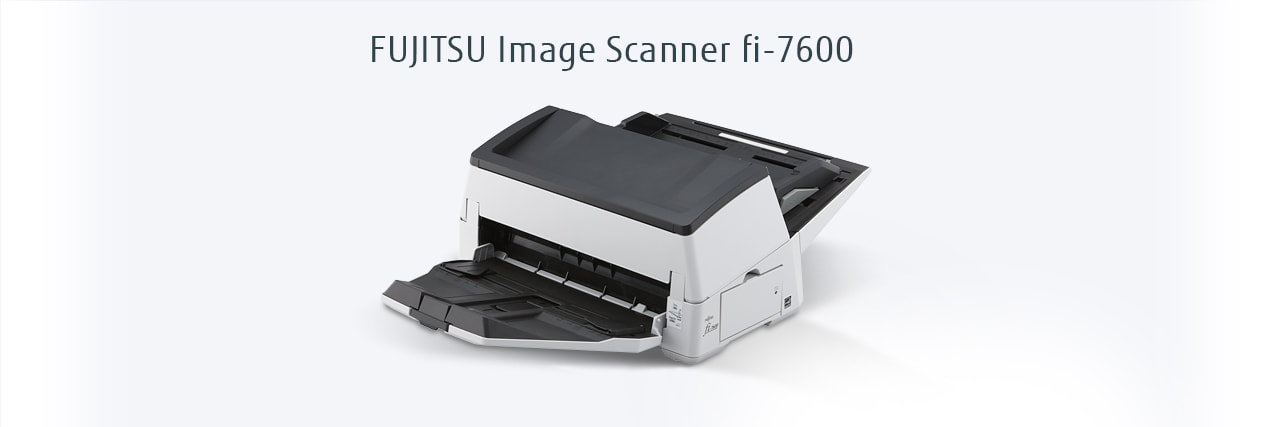

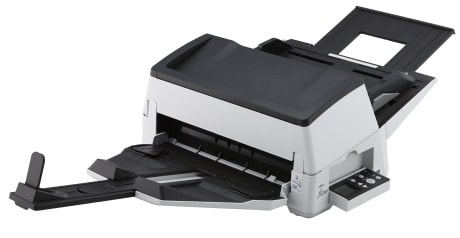

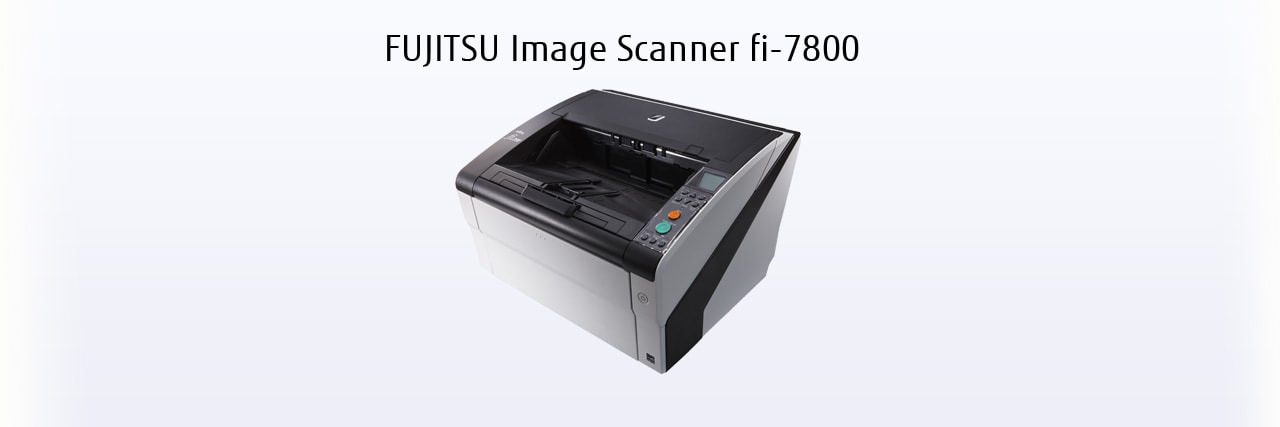

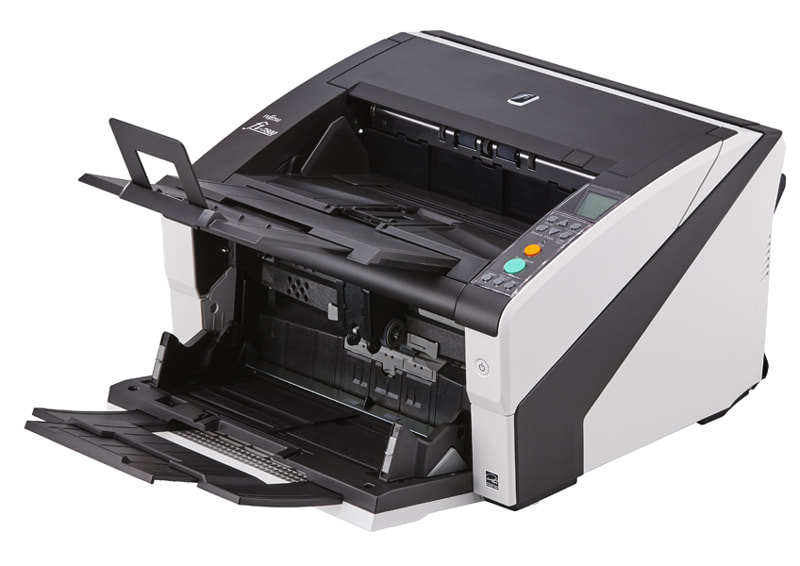

Fujitsu Ricoh Image Scanner fi-7900 / fi-7800 / fi-7600
Features and Benefits
The scanner is designed with operator usability as its first priority. It provides high quality technology for reliable scanning, a user-friendly design inherited from our high-end scanners, as well as enhanced image processing functions. Users can enjoy comfortable scanning while improving their work efficiency significantly.
- Automatic Separation Control function and Skew Reducer to ensure stable feeding
- Paper Protect function to prevent documents from being damaged
- Stacking Control function and Elevator Stacker for easy paper collection from the stacker
- Manual Feed Mode to scan various types of documents
- Environment-friendly product certified with ENERGY STAR Version 3
- Low profile design with operation panel and LCD for comfortable scanning
- Cleaning Mode for easy maintenance
- LAN network capability certified for Silex Device Server users
- Comes with PaperStream IP and PaperStream Capture providing advanced image processing functions
- PaperStream ClickScan also available for ad-hoc use to scan in 3 simple steps
- PaperStream Capture Pro software available as a premium option
Specification
- General
- Brochure
- Video
|
Product Name |
fi-7900 | fi-7800 | fi-7600 |
|
Scanner Type |
ADF (Automatic Document Feeder) / Manual Feed, Duplex |
|
Scanning Speed*1 (A4 Landscape) (Color*2/Grayscale*2/Monochrome*3) |
Simplex: 140 ppm (200/300 dpi) | Simplex: 110 ppm (200/300 dpi) | Simplex: 100 ppm (200/300 dpi) Duplex: 280 ipm (200/300 dpi) | Duplex: 220 ipm (200/300 dpi) | Duplex: 200 ipm (200/300 dpi) |
|
Scanning Speed*1 (A4 Portrait) (Color*2/Grayscale*2/Monochrome*3) |
Simplex: 105 ppm (200/300 dpi) | Simplex: 90 ppm (200/300 dpi) | Simplex: 80 ppm (200/300 dpi) Duplex: 210 ipm (200/300 dpi) | Duplex: 180 ipm (200/300 dpi | Duplex: 160 ipm (200/300 dpi) |
|
Image Sensor Type |
Color CCD x 2 (front x 1, back x 1) |
|
Light Source |
White LED Array x 4 (front x 2, back x 2) |
|
Optical Resolution |
600 dpi |
|
Output Resolution*4 (Color / Grayscale / Monochrome) |
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5 |
|
Output Format |
Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit |
|
Background Colors |
White / Black (selectable) |
|
Document Size |
Maximum : 304.8 x 431.8 mm (12 x 17 in.) | 304.8 x 431.8 mm (12 x 17 in.) | 304.8 x 431.8 mm (12 x 17 in.) Minimum : 52 x 74 mm (2 x 3 in.) | 52 x 74 mm (2 x 3 in.) | 50.8 x 69 mm (2 x 2.7 in.) (Portrait) Long Page : 5,588 mm (220 in.) | 5,588 mm (220 in.) | 5,588 mm (220 in.) |
|
Paper Weight (Thickness) |
FI7900 A4 to A5 Size 20 to 209 g/m² (5.4 to 56 lb) Less than A5 Size / Over A4 Size 41 to 209 g/m² (11 to 56 lb) Fi7800 A4 to A5 Size 20 to 209 g/m² (5.4 to 56 lb) Less than A5 Size / Over A4 Size 41 to 209 g/m² (11 to 56 lb) Fi7600 Paper 20 to 413 g/m2 (5.3 to 110 lb) Less than A8 size: 128 to 209 g/m2 (34 to 56 lb) Plastic Card Up to 1.4 mm*7 |
|
ADF Capacity |
FI7900 500 sheets (A4 80 g/m² or Letter 20 lb) FI7800 500 sheets (A4 80 g/m² or Letter 20 lb) FI7600 300 sheets (A4 80 g/m2 or Letter 20 lb) |
|
Expected Daily Volume |
120,000 sheets | 100,000 sheets | 44,000 sheets |
|
Multifeed Detection |
Overlap detection (Ultrasonic sensor), Length detection |
|
Paper Protection |
Lag detection | Lag detection | Lag detection, Sound detection (iSOP)*10 |
|
Interface |
USB 2.0 / USB 1.1 | USB 2.0 / USB 1.1 | USB 3.1 Gen 1 / USB 2.0 / USB 1.1 |
|
Power Requirements |
AC 100 to 240 V ±10 % |
|
Power Consumption |
FI7900 Operating Mode 200 W or less Sleep Mode 3.2 W or less Auto Standby (Off) Mode Less than 0.3 W FI7800 Operating Mode 200 W or less Sleep Mode 3.2 W or less Auto Standby (Off) Mode Less than 0.3 W FI7600 Operating Mode 64 W or less Sleep Mode 1.7 W or less Auto Standby (Off) Mode 0.35 W or less |
|
Operating Environment |
Temperature 5 to 35 °C (41 to 95 °F) Relative Humidity 20 to 80% (Non-condensing) |
|
Environmental Compliance |
ENERGY STAR®, RoHS |
|
Dimensions*9 (W x D x H) |
FI7900 460 x 430 x 310 mm (18.1 x 16.9 x 12.2 in.) FI7800 460 x 430 x 310 mm (18.1 x 16.9 x 12.2 in.) FI7600 236 x 432 x 214 mm (9.3 x 17.0 x 8.4 in.) |
|
Weight |
FI7900 32 kg (70 lb) or less FI7800 32 kg (70 lb) or less FI7600 11 kg (24 lb) |
|
Weight |
35 kg (77 lb) |
|
Supported Operating System |
FI7900 Windows® 11*10, Windows® 10*10, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008*11 FI7800 Windows® 11*10, Windows® 10*10, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008*11 FI7600 Windows® 11*12, Windows® 10*12, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008*13 |
|
Included Software / Drivers |
FI7900 PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver*12, PaperStream Capture, PaperStream ClickScan*13, 2D Barcode for PaperStream*13, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™*13, Scanner Central Admin FI7800 PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver*12, PaperStream Capture, PaperStream ClickScan*13, 2D Barcode for PaperStream*13, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™*13, Scanner Central Admin FI7600 PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver*14, PaperStream Capture, PaperStream ClickScan*15, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™*15, Scanner Central Admin, 2D Barcode for PaperStream*15 |
|
Image Processing Functions |
FI7900 Multi image output, Automatic color detection, Blank page detection, Static threshold, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Cropping, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Character extraction, Background pattern removal, Automatic profile selection FI7800 Multi image output, Automatic color detection, Blank page detection, Static threshold, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Cropping, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Character extraction, Background pattern removal, Automatic profile selection FI7600 Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Cropping, Static threshold, Divide long page |
|
Included Items |
FI7900 AC cable, USB cable, Setup DVD-ROM FI7800 AC cable, USB cable, Setup DVD-ROM FI7600 Stacker, ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM |
