Product > Interactive Whiteboards > IWB D7510
Online Video Conferencing Equipment
Papan Tulis Pintar Ricoh Interactive Whiteboard D7510
Features and Benefits

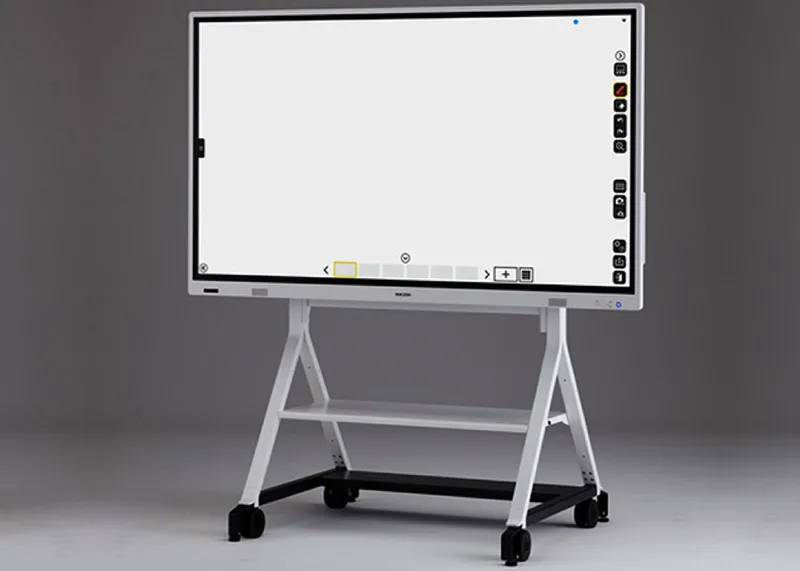

The Ricoh Collaboration Board D7510 is a one-stop collaboration powerhouse.
- One-stop collaboration hub with precise document annotation capabilities
- 4K display bringing high quality and detailed images
- Front positioned speakers for a better sound quality
- Sophisticated exterior design black or white up to 30% less heavy than predecessor displays, anti-glare anti-fingerprint coating, slimmer body and thinner frames fit to any type of office
- Intuitive UI/UX with motion detection to attract people attention and save your steps to start a meeting
- Video conference-ready with built-in speakers
- InGlass™ by FlatFrog and Optical Bonding technologies realizing smaller parallax & accurate pen response for a greater writing experience
- Compatible with Pexip, Skype for Business, Microsoft Teams and Zoom
- Designed for ease of use with a choice between a RICOH or an OS free controller, allowing you to work the way that suits you best
- Includes a variety of connectivity options, including multiple USB ports and Bluetooth connectivity for smart devices
- Adding RICOH Streamline NX enables secure card-based device access and allows you to email and print anything produced on the whiteboard
- Dust- resistant function ideal for construction sites and factories
- DICOM SIM projection mode for medical training
- Specification
- Brochure
- Video
|
GENERAL |
Interface (input) - Video: VGA, HDMI, DisplayPort™ Interface (input) - Audio: Line 3.5 mm Interface (output) - Video: DisplayPort™ Interface (output) - Audio: Speaker-out Interface (output) - Control: USB3.0 Type B Enhanced features: Text OCR, Network folder, Remote web browser viewing, Finger touch highlight, Zooming, Remote sharing function, Remote PC operation, E-mail function, Print function Built-in speaker: 12 W x 2 Dimensions (W x D x H): 1,733 x 79 x 1,045 mm Weight - Mainframe: 59 kg Weight - Full configuration: 61 kg Power source: 100 - 240 V, 50/60 Hz Control: RS-232C(PC-control) Motion detection sensor: Yes Dust resistant function: IP5X equivalent |
|
ECOLOGY |
Power consumption - Maximum: 500 W Power consumption - Stand-by mode: 0.3 W Operating temperature: 0°C - 32°C Operating humidity: 10% - 80% Storage conditions - Humidity: 15% - 80% |
|
DISPLAY PANEL |
Panel size - Diagonal: 75" wide ( mm) Backlight: DLED system Effective display area (W x H): 1,650.24 x 928.26 mm Resolution - Maximum: 3,840 x 2,160 dot Colour - Maximum: Over 1,070,000,000 colours Brightness - Maximum: 440 cd/m² Aspect ratio: 16 : 9 Contrast ratio: 4,000 : 1 Pixel pitch: 0.429 x 0.429 mm Response speed: 8 ms (Grey to Grey, Ave.) Viewing angle (H/V): 178°/178° (Contrast ratio >= ) Cover glass - Thickness: 2mm Cover glass - Anti-glare: AG pre-treated, AF (Anti-fingerprint) Display orientation: Landscape |
|
TOUCH SYSTEM |
Touch technology: InGlass™, Optical bonding Touch point: 20 point (display only) Touch resolution: 19,353 x 10,886 Accuracy: +/- 1.2 mm in touchable area Touch pen request: >= 2 mm Touch output: USB 3.0 (type B) OS - Multi touch: Windows 8/8.1, Windows 8/8.1 Pro, Windows 8/8.1 Enterprise, Windows Embedded 8 Standard, Windows 10 Home, Windows 10 Pro, Windows 10 IoT, Windows Embedded 7 Standard, Windows 10 Enterprise OS - Single touch: Windows 8/8.1, Windows 8/8.1 Pro, Windows 8/8.1 Enterprise, Windows Embedded 7 P, Windows Embedded 8 Standard, Windows 10 Home, Windows 10 Pro, Windows 10 Enterprise, Windows 10 IoT, Mac OS X 10.8 - Mac OS X 10.15 |
