Epson EB-695Wi Ultra-Short Throw Interactive WXGA 3LCD Projector
Seamlessly connect with panoramic images
Features and Benefit
The EB-695Wi ultra-short throw projector will transport your audience on a breath-taking journey across the globe through life-size panoramic visuals. With an incredible 10,000 hours of bulb life in eco-mode, the project will last longer than previously. You can scroll, zoom, and draw across dual projections while creating panoramic projections and enjoying seamless interactions with just your fingers or the interactive pens.
- WXGA Resolution
- White and Colour Light Output at 3,500 lumens
- Dual Screen Interactivity
- Finger Touch Interactive
- Ultra Short Throw 80" 47cm
- 10,000 Hours Lamp Life in Eco Mode
- Multi-PC Projection
- 3 x HDMI
- Specifications
- Brochure
- Video
|
Projectors Facets: |
Resolution, Projectors Facets: WXGA Contrast Ratio, Projectors Facets: 14,000:1 Inputs & Interfaces, Projectors Facets: Interactive Brightness Range Lumens, Projectors Facets: 2000 Short Throw / Ultra Short Throw, Projectors Facets: Ultra Short Throw Features, Projectors Facets: Wifi Quick Corner Laser / Lamp, Projectors Facets: Lamp |
|
Brightness2: |
White Light Output (Normal/Eco): 3,500lm / 2,900lm Colour Light Output: 3,500lm |
|
Connectivity: |

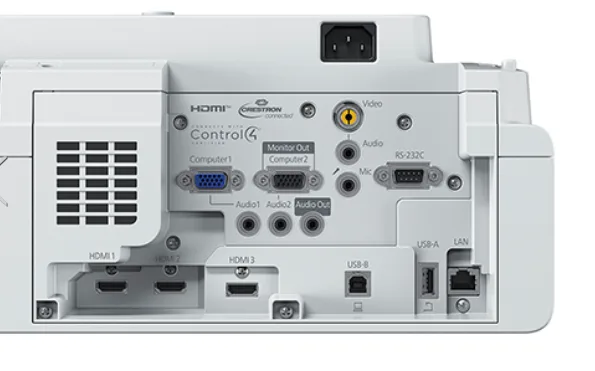

Network: Wired LAN RJ45 x 1 (100Mbps) Wireless: Optional (ELPAP10) Analog Input: D-Sub 15Pin: 2 (Blue) Composite: RCA x 1 (Yellow) Digital Input: HDMI: 3 (HDMI1 in common with MHL) Output Terminal: D-Sub 15Pin:1 (Black) In common with Computer2 Audio Input: Stereo Mini Jack: 3 Audio Output: Stereo Mini Jack: 1 Control I/O: RS-232C: D-Sub 9pin x 1 Interactive Sync: Stereo Mini Jack IN x 1, OUT x 1 Touch Unit: Mini DIN 8-pin: Yes Others: USB Type A: 1 (for USB Memory, USB Document Camera, Firmware Update, Copy OSD Settings) USB Type B: 1 (for USB Display, Mouse, K/B, Control, Firmware Update, Interactive, Copy OSD Settings) Microphone Input: 1 |
|
Contrast Ratio: |
Contrast Ratio: 14,000:1 |
|
Wireless Specifications (Wireless LAN: Built-in): |
Supported Speed for Each Mode: IEEE 802.11b: 11 Mbps*3 IEEE 802.11g: 54 Mbps*3 IEEE 802.11n: 130 Mbps*3 Wireless LAN Security: WPA/WPA2-Personal (with optional ELPAP10) |
|
Screen Size (Projected Distance): |
Screen Size (Projected Distance): 60” - 100” [35.4 - 60.1 cm] 74.3” screen 44.3cm |
|
Operating Temperature: |
Single Use: 5 - 40 °C <41 - 104 °F> (0m / 0ft - 2,286m / 7,500ft) 5 - 35 °C <41 - 95 °F> (over 2,286m / 7,500ft) (20% - 80% humidity, No Condensation) Multi-projection Use: 5 - 35 °C <41 - 95 °F> (0m / 0ft - 2,286m / 7,500ft) 5 - 30 °C <41 - 86 °F> (over 2,286m / 7,500ft) (20% - 80% humidity, No Condensation) |
|
Operating Altitude: |
Operating Altitude: 0 - 3,000m <0 - 9,843 ft> (over 1,500m / 4,921 ft: with High altitude mode) |
|
Start-Up Period: |
Start-Up Period: About 8 seconds, Warm-up Period: 30 seconds |
|
Cool Down Period: |
Cool Down Period: Instant Off |
|
Internal Speaker(s): |
Sound Output: 16W Mono |
|
Dimension Excluding Feet (W x H x D): |
Dimension Excluding Feet (W x H x D): 367 x 149 mm x 400 |
|
Air Filter: |
Type: Electrostatic Filter Maintenance Cycle*4: 5,000 hours (Power Consumption: Normal) 10,000 hours (Power Consumption: Eco) |
|
Fan Noise: |
Fan Noise (Normal / Eco / Eco2): 35dB / 30dB / 29dB |
|
Power: |
Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz |
|
Keystone Correction: |
Vertical/Horizontal: ±3° / ±3° Quick Corner: Yes |
|
Touch Unit: |
Dimension Excluding Protrusion (DxWxH): 51 x 210 x 95 mm Weight: 450g |
|
Direct Power On / Off: |
Direct Power On / Off: Yes |
|
Specifications of Main Parts: |
LCD:Size: 0.59” (D9 C2fine) Native Resolution: WXGA Lamp: Type: 250W UHE Life (Normal / Eco / Eco2)*1: 5,000 hours / 10,000 hours / 9,000 hours |
|
Interactive Unit: |
Technology: Infrared Input Devices: Digital Pen (Easy Interactive Pen 1, 2) Finger (1-6 fingers) Connection To Computer: USB, Network Calibration: Pen: Auto / Manual (25points) Finger: Manual (1-6 fingers) Functions: Hover, Right Click, Auto Adjust Pen Area |
|
Weight: |
Weight: Approx. 5.8kg |
