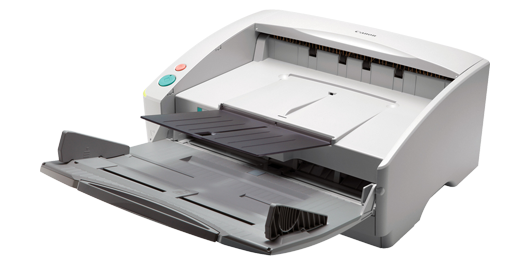

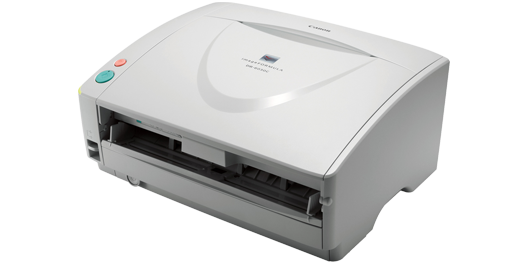

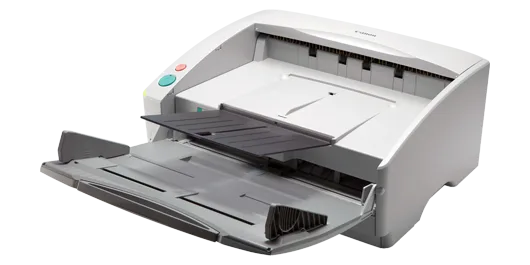

A3 ADF Scanner Auto Document Feeder
Canon DR 6030C
Features and Benefits
A3 ADF Scanner Auto Document Feeder Canon imageFORMULA DR-6030C ultra-compact high-speed A3 production scanner offers excellent reliability and flexibility: ideal in centralized or remote offices or specialist scanning bureaus.
- Ultra-compact A3 production scanner
- High-speed colour scanning (60ppm portrait / 80ppm landscape)
- Advanced image processing features
- Ultra-reliable paper transport system
- Class-leading energy efficiency
- Optional Flatbed 101 Scanner Unit
- Kofax VRS included
Specification
- General
- Scanning
- Document
|
Type |
Desktop Type Sheet Fed Scanner |
|
Scanning sensor unit |
CMOS CIS 3 Line Sensor |
|
Optical resolution |
600 dpi |
|
Light Source |
RGB LED |
|
Scanning side |
Front/Back/Duplex |
|
Interface |
High Speed USB 2.0 & SCSI-3 |
|
Dimensions (WxDxH) |
Tray Closed: 398 (W) × 312 (D) × 191 (H) mm Tray Opened: 398 (W) × 668 (D) × 194 (H) mm at U-turn path |
|
Weight |
Approx. 10.5 kg |
|
Power requirements |
AC220 - 240V (50/60Hz) |
|
Power consumption |
Scanning: 46.5W, Sleep Mode:3.7W, Power Turned Off: 0.04W |
|
Operating environment |
10 - 32.5°C (50 - 90.5°F), Humidity 20 - 80% RH |
|
Environmental compliance |
RoHS and ENERGY STAR |
|
Black and White |
80ppm / 160ipm - Landscape speed |
|
Colour |
80ppm / 160ipm - Landscape speed |
|
Output resolution |
100 x 100dpi, 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi |
|
Colour mode |
B&W, Error Diffusion, High speed Text Enhancement, Advanced Text Enhancement, Advanced Text Enhancement II, 8-bit (256 level) Greyscale, 24-bit colour |
|
Suggested Daily Duty Cycle |
Approx: 10,000 scans/day |
|
Width |
53 - 300mm |
|
Length |
70 - 432mm |
|
Thickness |
Separation On: (U-turn/Straight Through) 52 - 128g/m² (0.06 - 0.15mm）Separation Off: (U-turn) 42 - 157g/m² (0.05 - 0.20mm）(Straight Through) 42 - 546g/m² (0.05 - 0.66mm） |
|
Long document mode |
3000mm Max (Selectable in MS Windows control panel) |
|
Paper separation |
Retard Roller |
|
Feeder capacity |
100 Sheets (80g/m²) |
