​Print speed: 36-in: 25 sec/page on A1, 82 A1 prints per hour (ENERGY STAR and the ENERGY STAR mark are registered trademarks owned by the U.S. Environmental Protection Agency.)
Print resolution: Up to 2400 x 1200 optimized dpi
Technology: HP Thermal Inkjet
Margins

• Roll: 5 x 5 x 5 x 5 mm
• Sheet: 5 x 5 x 5 x 5 mm

Ink types: Dye-based (C, M, Y); pigment-based (K)
Page Yield: 20 ml of ink yields 101 A1/D pages, taking into account maintenance routines (Visit http://www.hp.com/recycle to see how to participate and for HP Planet Partners program features and availability; program may not be available in your area.)
Ink drop: 5.5 pl (C, M, Y); 12 pl (K)
Printheads: 1 (cyan, magenta, yellow, black)
Printhead nozzles: 1376
Line accuracy: ±0.1% (±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Heavyweight Coated roll feed and Original HP inks.)
Minimum line width: 0.02 mm
Max optical density: 8 L* min/2.10 D

Handling: Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
Roll size: 36-in: 279 to 914 mm
Sheet size:

• Auto sheet feeder: 210 x 279 to 330 x 482 mm
• 36-in manual feed: 210 x 279 to 914 x 1897 mm

Standard sheets:

• Auto sheet feeder: A4, A3
• 36-in manual feed: A4, A3, A2, A1, A0

Grammage: 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder)
Thickness: Up to 0.3 mm

Line drawings; Presentations; Renderings
Memory: 1 GB
Hard disk: None

Interfaces: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11
Print languages (standard): HP-GL/2, HP-RTL, CALS G4, JPEG, URF
Drivers: Raster driver for Windows and macOS

Printer: 36-in: 1317 x 555 x 932 mm
Shipping: 36-in: 1470 x 575 x 646 mm

Printer: 36-in: 41.7 kg
Shipping: 36-in: 62 kg

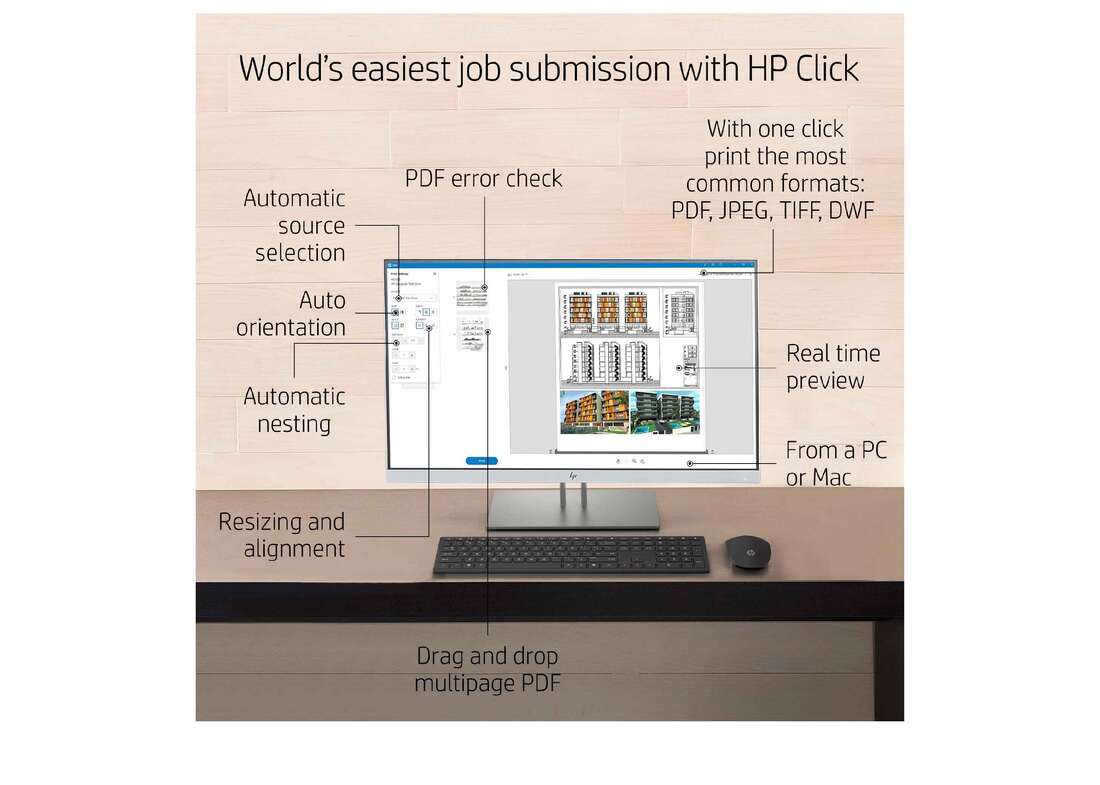

HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant
Remote print enabled: Yes
One-click multi-size printing: Yes

Recycled plastic in printer: 10%
Operating temperature: 5 to 40ºC
Operating humidity: 20 to 80% RH
Operating altitude: Up to 3000 m
Storage temperature: -25 to 55ºC

​Sound pressure: 42 dB(A) (operating), <16 dB(A) (idle)
Sound power: 5.8 B(A) (operating), <3.4 B(A) (idle)

Consumption: <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)
Requirements: Input voltage (auto ranging): 220-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

Safety: EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA)
Electromagnetic: Compliant with Class B requirements EU (EMC/RED Directives)
Environmental: ENERGY STAR; WEEE; EU RoHS; EAEU RoHS; REACH; ErP
