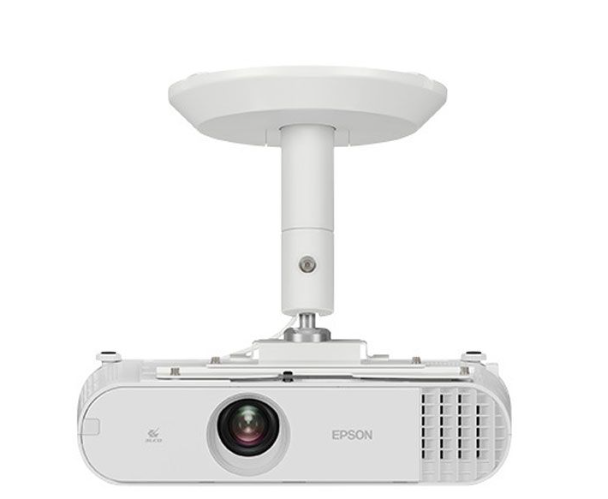

Epson Epson EB-U50 WUXGA 3LCD Projector
Using Projections to Weave Mesmerizing Stories.
With Epson's EB-U50 projector, redefine retail digital solutions with vibrant visuals and improve the consumer experience. These highly affordable projectors are the greatest projectors for use in retail, business, and educational settings since they have advanced network security and the capacity to simultaneously transmit material on many devices.
Features and Benefit
- Specifications
- Brochure
- Video
|
Projection Technology: |
RGB liquid crystal shutter projection system (3LCD) |
|
Brightness2: |
White Light Output (Normal / Extended): 3,700 lm*1 Colour Light Output: 3,700 lm*1 Contrast Ratio: 16,000:1 |
|
Connectivity: |
Analog Input: D-Sub 15Pin: 2 Digital Input: HDMI: 2 Output Terminal: D-Sub 15Pin: 1 Audio Input: Stereo Mini Jack: 2 Audio Output: Stereo Mini Jack: 1 |
|
Projection Lens: |
Type: Optical Zoom (Manual) / Focus (Manual) Focal Length: 20.42 - 24.50 mm Zoom Ratio: 1 – 1.2 F-number: 1.50 – 1.71 Throw Ratio Range: 1.38 - 1.68 (Wide to Tele) |
|
Wireless Specifications (Wireless LAN: Built-in): |
Supported Speed for Each Mode: IEEE 802.11b (2.4GHz): 11 Mbps*2 IEEE 802.11g (2.4GHz): 54 Mbps*2 IEEE 802.11n (2.4GHz): 130.0 Mbps*2 Wireless LAN Security: Quick Mode: OPEN, WPA2-PSK Advanced Mode: OPEN, WPA/WPA2-PSK, WPA/WPA2-EAP Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP |
|
Screen Size (Projected Distance): |
Standard Size: Tele: 30" to 300" [0.87 to 9.02 m] Wide: 30" to 300" [1.07 to 10.98 m] |
|
Geometric Correction: |
|
|
Operating Temperature: |
Operating Temperature: 5 - 40 °C <41 - 104 °F [When environment temperature becomes high, the brightness becomes dark automatically] |
|
Operating Altitude: |
Operating Altitude: 0 - 3,048 m <0 - 10,000 ft> (over 1,500m / 4,921ft : with high altitude mode) |
|
Cool Down Period: |
Cool Down Period: Instant Off |
|
Direct Power On/Off: |
Direct Power On/Off: Yes |
|
Weight: |
Weight: Approx. 3.1 kg (Including Standard Lens) |
|
Air Filter: |
Type: High Efficiency Filter Maintenance Cycle: 10,000 / 20,000 hours*3 |
|
Fan Noise |
Normal / Quiet: 37dB / 28dB |
|
Power: |
Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz |
|
Others: |
USB Type A: 1 (for USB Memory, USB Document Camera, Wirelss LAN unit, Firmware Update) USB Type B: 1 (for USB Display, Control, Firmware Update) |
|
Control I/O: |
RS-232C: D-Sub 9pin x 1 |
|
Network: |
Wireless LAN: RJ45 x 1 Wireless: Built-In |
|
Start Up Period: |
Start Up Period: Up to 6 seconds, Warm-up Period: 30 seconds |
|
Power Consumption (220-240V): |
Lamp (Normal / Extended): 285W / 218W Standby: 2.0W / 0.3 W |
|
Dimension Excluding Feet: |
Dimension Excluding Feet (D x W x H): 248 x 364 x 87 mm |
|
Projectors Facets: |
Resolution, Projectors Facets: WUXGA Contrast Ratio, Projectors Facets: 16,000:1 Inputs & Interfaces, Projectors Facets: HDMI RJ-45 & RS-232 USB Plug and Play Brightness Range Lumens, Projectors Facets: 2000 Features, Projectors Facets: Wifi Quick Corner Standard Throw Edge Blending Laser / Lamp, Projectors Facets: Lamp |
|
Specifications of Main Parts: |
LCD: Size: 0.67” Native Resolution: WUXGA (1920 x 1200) Lightsource: Type: 200W UHE Life (Normal / Eco): 10,000 / 17,000 hours Aspect Ratio: 16:10 |
