Product > Document Scanner > Book Scanner > Czur Scanner ET 16 Plus
Book Scanner, A3 Scanner

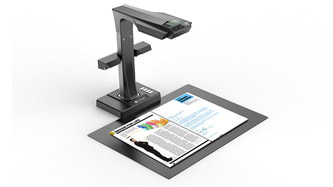

CZUR ET16 Plus Book Scanner
Features and Benefits
Unlike any other traditional scanners, CZUR ET Smart Book Scanner revolutionizes scanning experience by bringing simple, intelligent and fast scanning performance. All books, magazines, contracts and any paper documents within A3 size can be scanned directly without cutting or unbinding at the speed of 1.5s/page. All of your scanned documents can be converted to editable Word、PDF、TIFF and Excel via OCR (Optical Character Recognition) function.
- No Need to Unbind
- Two Pages in 1.5s
- 16MP HD Camera
- Up to A3 Size
- OCR by ABBYY
- Anti-Reflection
- Multiple Operating Modes
- Multi-Material Compatibility
- Visual Presenter
- Professional Trimming
- Auto Flattening & Smart Paging
- Batch Edit and Export
Specification
- General
- Configurations
- Software and Optical Features
|
Product Type |
Smart Scanner |
|
Scanning Materials |
Documents, Books, Magazines, Forms, Invoices, Certificates, Business cards and Sculpture object |
|
Sensor |
CMOS |
|
Pixel |
16 Megapixels |
|
Resolution |
4608 x 3456 |
|
DPI (default) |
250 |
|
Scanning Format |
≤A3, 420 × 297 mm（16.5×11.7 inch） |
|
Maximum Scanning Format |
480×360 mm (18.89×14.17 inch) |
|
Maximum Scanning Thickness |
420×297 mm: supports 35 mm 271×195 mm: supports 50 mm |
|
Scan Speed |
Flat single page≈1.5s/page; Books≈1.5s/dual pages |
|
Pre Scan |
0s |
|
Image Format |
JPG |
|
Color Bit Depth |
24 bits |
|
Export Format |
JPG, PDF, Searchable PDF, Word, Excel, TIFF |
|
Video Streaming Format |
MJPG |
|
Preview |
PC-Visual presenter: 3072*1728@12Fps; PC-Scanning:1536*1152@20Fps |
|
USB |
USB 2.0 High-Speed |
|
Light Source |
Built-in lights and Side lights |
|
Focus Mode |
Fixed focus |
|
Scanning Method |
Device Control, Software triggering, Hand button, Foot pedal |
|
System Support |
XP, Win 7/ 8/10, 32/64-bit; macOS 10.11 and above |
|
Processor |
32-bit MIPS CPU |
|
Laser Assisted |
3 laser rays |
|
DDR |
1G bit |
|
Image Cache |
1GByte TF |
|
LCD |
2.4", 4:3, 320x240 |
|
MIC |
√ |
|
Buzzer |
√ |
|
Hand Button |
√ |
|
Foot Pedal |
√ |
|
Black Document Pad |
√ |
|
Power |
Input:100 to 240V, 50/60Hz; Output: 9V/2A |
|
Flattening Curve |
√ |
|
Smart Paging |
√ |
|
Smart tilt corrections and auto cropping |
√ |
|
Professional Trimming |
√ |
|
Background purifying |
√ |
|
Finger Removal |
√ |
|
Color Mode |
Color, Patterns, Stamps, Gray scale, B&W |
|
Auto Scan |
√ |
|
Manual Selection Scanning |
√ |
|
Screen Recording |
√ |
|
Video Recording |
√ |
|
Software Features Setting |
√ |
|
Element |
3G2P+IR |
|
Sensor Size |
1/2.3" |
|
EFL |
4.55mm |
|
BFL |
>3.4mm |
|
F/NO |
4.5 |
|
IR Cut |
650±10nm |
|
Field of view |
82° |
|
Distortation |
<0.5% |
