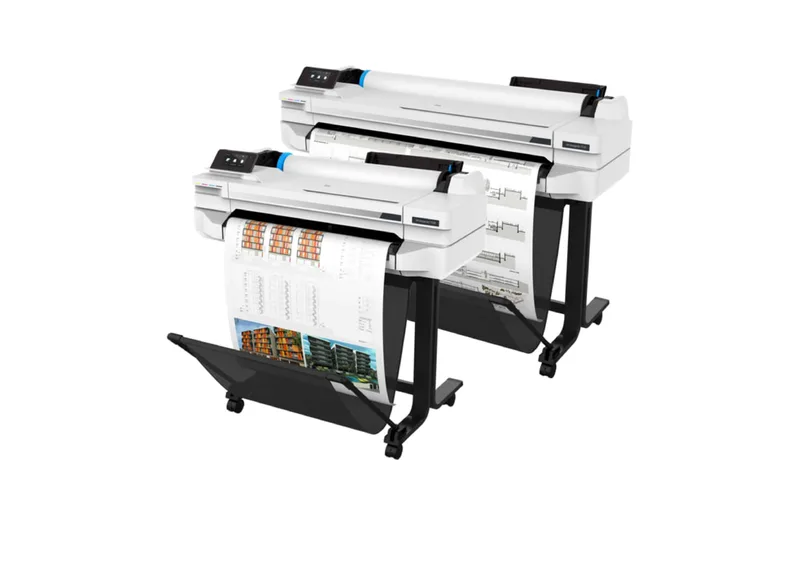

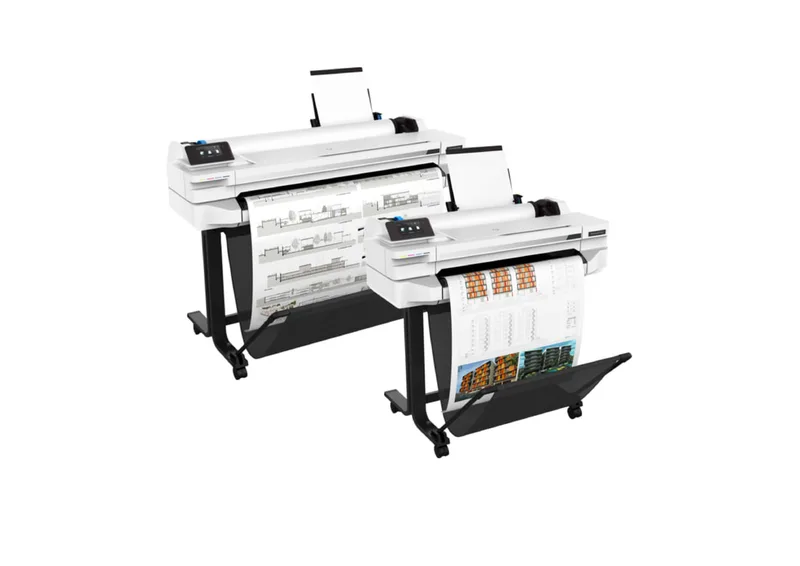

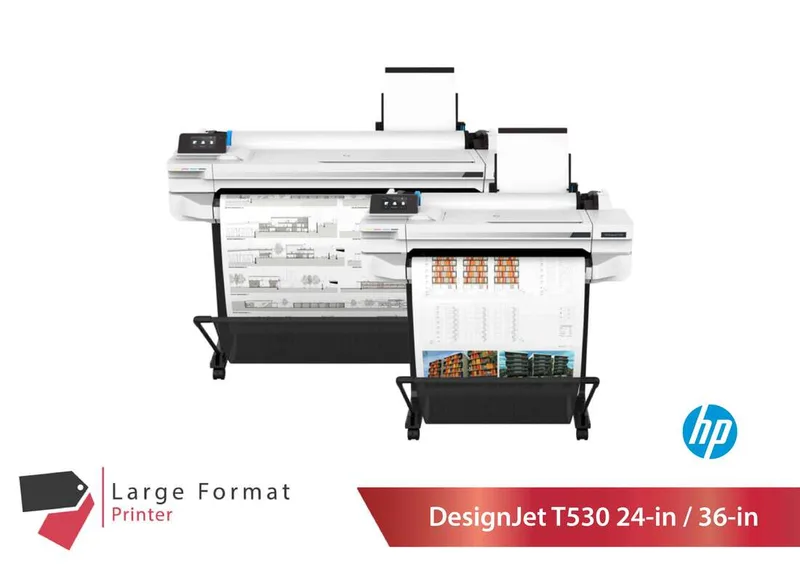

A1 A0 Large Format Printer Plotter

HP DesignJet T530 24 inch / 36 inch Printer

Features and Benefits

A1 A0 Large Format Printer Plotter HP DesignJet T530 24 inch / 36 inch Printer, easy printing for growing needs.

Function: Print
24-in Size: 610 mm, 36-in Size: 914 mm

Fast Ethernet (100Base-T), Hi-Speed USB 2.0, Wi-Fi

Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter

Perfectly fitted for office
Save space by placing the plotters wherever they fit best, using the built-in stand. Save time by connecting and printing right away with Wi-Fi capabilities. Save money by printing in-house with HP’s most affordable plotters.

Simple
Speed up PDF printing process with free HP Click software. Easily access files from cloud folders and print them using smartphone with HP Smart app. Free and intuitive HP Poster Web app.

High Quality
Meet client expectations with high-quality, highspeed A1/D-size printing, as fast as 27 seconds. Get perfectly matched colour on both small- and large-format prints with built-in A3/A4 tray. Achieve precise details with up to 2400 dpi and original HP/GL-2 capability. Convey your ideas with bold images, sharp lines on plain paper for any application with HP Bright Office Inks.

For more information, please visit http://www.hp.com/go/designjett500

Specifications

Print speed	24-in: 30 sec/page on A1, 76 A1 prints per hour 36-in: 27 sec/page on A1, 79 A1 prints per hour
Print resolution	Up to 2400 x 1200 optimised dpi
Technology	HP Thermal Inkjet
Margins	Roll: 5 x 5 x 5 x 5 mm Sheet: 5 x 5 x 5 x 5 mm
Ink types	Dye-based (C, M, Y); pigment-based (K)
Ink drop	5.5 pl (C, M, Y); 12 pl (K)
Printheads	1 (cyan, magenta, yellow, black)
Printhead nozzles	1376
Line accuracy	±0.1%
Minimum line width	0.02 mm (HP-GL/2 addressable)
Max optical density	8 L* min/2.10 D
Media	Handling: Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter Roll size 24-in: 279 to 610 mm 36-in: 279 to 914 mm Sheet size 24-in: Input Tray: 210 x 279 to 330 x 482 mm, Manual Feed: 330 x 482 to 610 x 1897 mm 36-in: Input Tray: 210 x 279 to 330 x 482 mm Manual Feed: 330 x 482 to 914 x 1897 mm Standard sheets 24-in: Input tray: A4, A3 manual feed: A2, A1 36-in: Input tray: A4, A3 manual feed: A2, A1, A0 Grammage 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray) Thickness Up to 0.3 mm
Applications	Line drawings; Presentations; Renderings
Memory	1 GB
Hard disk	None
Connectivity	Interfaces: Fast Ethernet (100Base-T), Hi-Speed USB 2.0, Wi-Fi Print languages (standard): HP-GL/2, HP-RTL, JPEG, CALS G4 Printing paths: Windows printer drivers, HP Print Service Plugin for Android, HP Print for Chrome for Chrome OS Drivers: Raster driver for Windows
Dimensions (w x d x h)	Printer 24-in: 987 x 530 x 932 mm 36-in: 1292 x 530 x 932 mm Shipping 24-in: 1090 x 570 x 480 mm 36-in: 1395 x 570 x 480 mm
Weight	Printer 24-in: 26 kg 36-in: 30.5 kg Shipping 24-in: 48.5 kg 36-in: 58 kg
HP Software and solutions	HP Click, HP DesignJet Utility for Windows, HP Smart app, HP Poster Web app
Environmental ranges	Operating temperature: 5 to 40ºC Operating humidity: 20 to 80% RH Storage temperature: -25 to 55ºC
Acoustics	Sound pressure: 45 dB(A) (operating), <16 dB(A) (idle) Sound power: 6.2 B(A) (operating), <3.4 B(A) (idle)
Power	Consumption < 35 W (printing), < 6 W (ready), < 4.5 W (sleep), < 0.3 W (standby) Requirements Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Certification	Safety USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS); Mexico (NYCE) Electromagnetic Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) Environmental ENERGY STAR; WEEE; EU RoHS; REACH; EuP; EPEAT
Warranty	One-year limited hardware warranty
