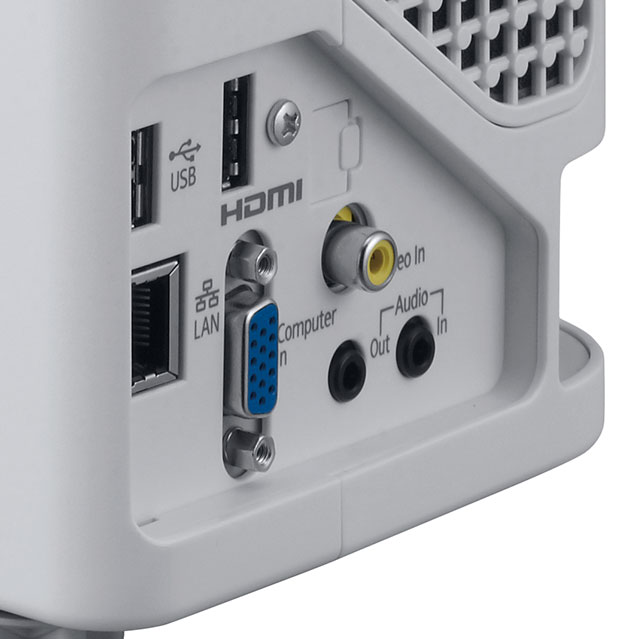

INTERFACE

HDMI, RCA, mini D-sub15 (computer)
Audio: 3.5mm mini jack
USB Type-A

PROJECTION SYSTEM

RESOLUTION

WXGA (1280 x 800)

BRIGHTNESS

3,500 lumen

CONTRAST RATIO

2000 : 1

HIGH CONTRAST RATIO

13000 : 1

PROJECTION SCREEN SIZE

48" to 80"

PROJECTION DISTANCE (FROM REAR OF UNIT TO PROJECTION SURFACE)

11.7 cm to 24.9 cm

LAMP LIFE

Standard : 3500 hours
Eco mode : 5000 hours

LIGHT SOURCE

HIgh Pressure Mercury Lamp

ZOOM RATIO​

80% - 100%

MAGNIFY

100%, 125% , 150% , 175% , 200%

ZOOM & FOCUS

Zoom : Digital
Focus : Manual

DIMENSIONS (W x D X H)

257 x 144 x 221 mm

WEIGHT

3 Kg

RGB COMPATIBLE SIGNALS

VGA , SVGA ,  XGA , WXGA , WXGA+ , SXGA , SXGA+ , UXGA

CONTROL

USB Type A (USB 2.0 High Speed)

LAN

Wired : RJ-45 (10BASE-T, 100BASE-TX , 1000BASE-T)
Wireless : IEEE 802.11 b/g/n
Network Authentication : None, open system, common key, WPA-PSK, WPA/WPA2-EAP
Network Encryption : None, WEP, TKIP, CCMP(AES)

NETWORK FEATURES

Network projection, Multi-screen (1 PC to 4 projectors), 4 in 1 projection (discussion mode), Projector management, PJ Link, PENTAX-Ricoh camera projection (USB), Web Image Monitor (setting from browser), Still image projection
with DLNA server, Crestron Roomview, AMX, Wi-Fi, UPnP, Smart Device Connector

PRIMARY FEATURES

​Mute (Blank), Freeze, Re-size (Magnify), Auto keystone (Vertical), Password protection, Blackboard mode, Key lock, User logo, Eco mode, Carbon meter, Closed captioning, Color Universal Design, 3D (Blu-ray, DLP), Image Eco (Brightness control with sensing signal), Sound mode, Simple DICOM, Presentation Timer, Power timer

BUILT-IN SPEAKER

​2W mono

PROJECTION MODE

Standard, Rear, Ceiling, Rear ceiling, Table top

POWER CONSUMPTION

Operating power: 313 W
Energy Saver timer: 208 W
Standby (Non-network): 0.3 W
Standby (Wired LAN): 1.4 W
Standby (Wired LAN + Wireless LAN): 1.8 W​

OPERATING TEMPERATURE

5°C - 35°C

OPERATING HUMIDITY

30% - 70%

NETWORK UTILITY QUICK PROJECTION

Windows Vista (more than SP2) (Ultimate/Business/HomePremium/HomeBasic) 32bit/64bit,
Windows 7 SP1 (Ultimate/Enterprise/Professional/Home Premium) 32bit/64bit,
Windows 8 /Pro/Enterprise 32bit/ 64bit (not complied to Metro style app but desktop mode),
Windows 8.1 / Pro / Enterprise 32bit/ 64bit (not complied to Metro style app but desktop mode),
Windows 10 Mac OS X (10.8 - 10.10)

PROJECTION MANAGEMENT UTILITY

Windows Vista (more than SP2) (Ultimate/Business/HomePremium/HomeBasic) 32bit/64bit,
Windows 7 SP1 (Ultimate/Enterprise/Professional/HomePremium) 32bit/64bit,
Windows Server 2008 SP2 32bit/64bit,
Windows Server 2008R2 SP1 64bit (standard edition),
Windows 8/Pro/Enterprise 32bit/64bit,
Windows 8.1 / Pro / Enterprise 32bit/64bit,
Windows 10

JPEG CONVERSION UTILITY

Windows Vista more than SP2 (Ultimate/ Business/HomePremium/HomeBasic) 32bit/64bit,
Windows 7 SP1 (Ultimate/Enterprise/Professional/ Home Premium) 32bit/64bit,
Windows 8/ Pro/ Enterprise 32bit/64bit, Windows 8.1 / Pro / Enterprise 32bit/64bit,
​Windows 10
