Portable LCD Projector
Ricoh PJ WX3351N
Features and Benefits

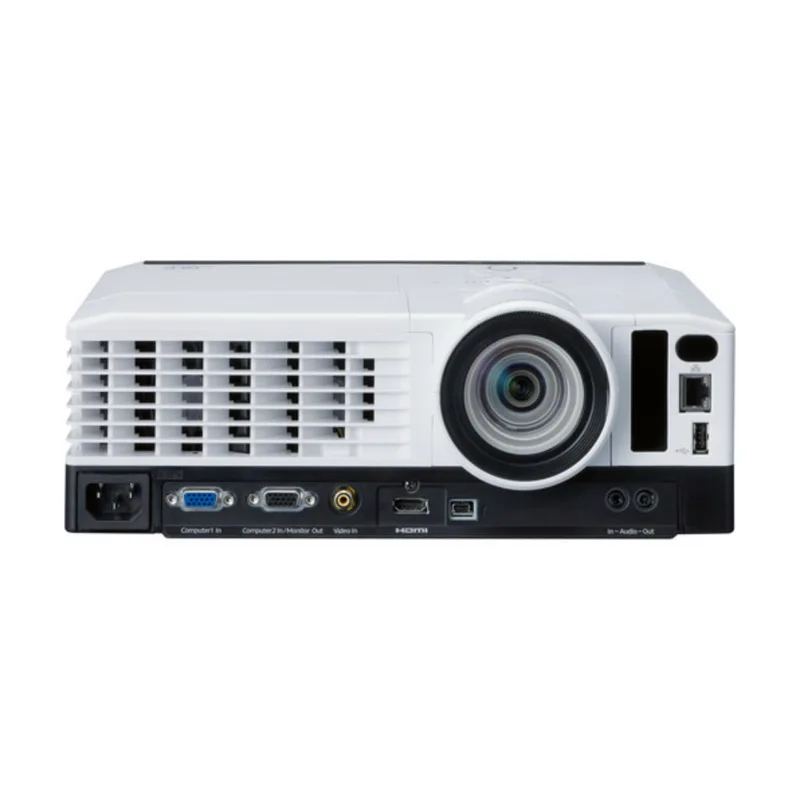

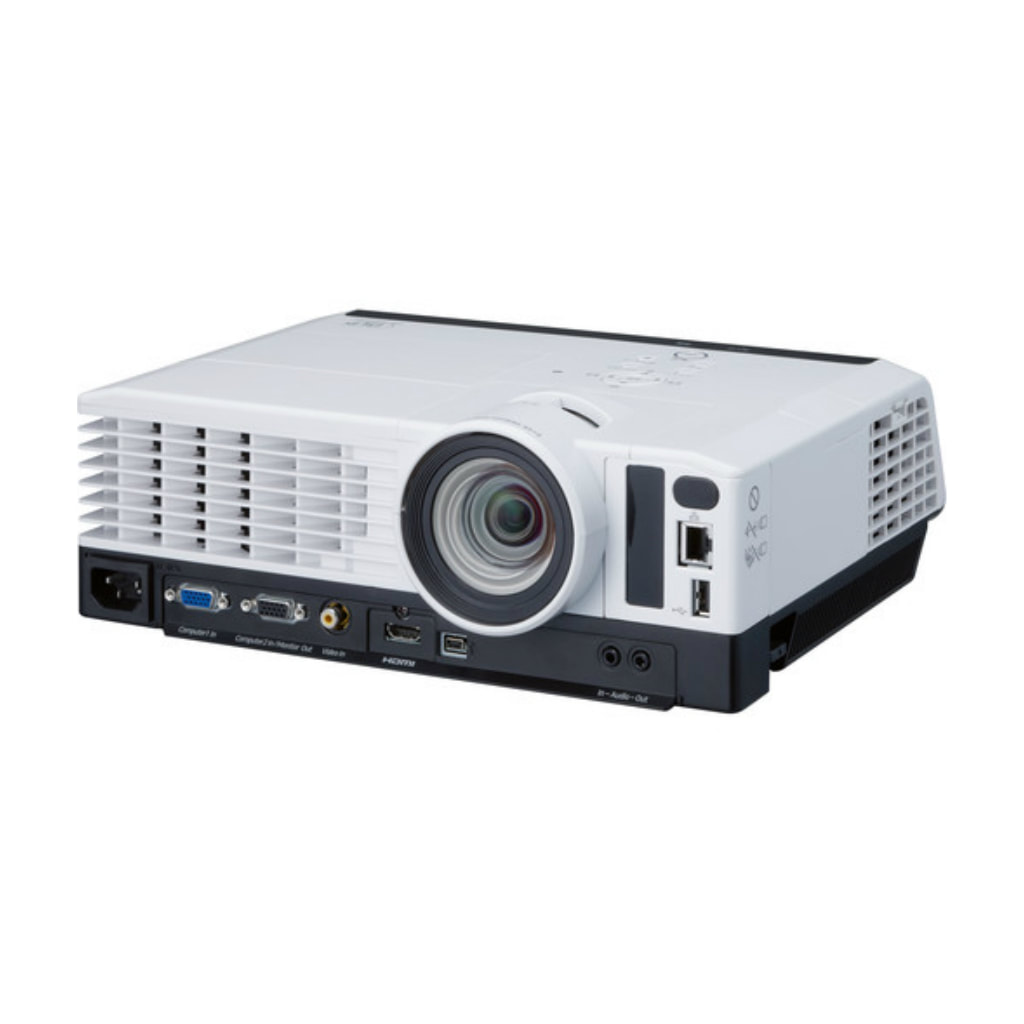

Portable LCD Projector Ricoh PJ WX3351N
Image quality is superb using optics from Ricoh’s advanced camera range, allowing pin-sharp projection of high definition images from HD devices. A wide choice of connectivity options allows source devices to be directly connected or via LAN interface and Wi-Fi connection. An optional Interactive kit converts screen into an interactive whiteboard allowing you to scroll, point and click in applications or draw and write on your presentations.
Image quality is superb using optics from Ricoh’s advanced camera range, allowing pin-sharp projection of high definition images from HD devices. A wide choice of connectivity options allows source devices to be directly connected or via LAN interface and Wi-Fi connection. An optional Interactive kit converts screen into an interactive whiteboard allowing you to scroll, point and click in applications or draw and write on your presentations.
- Easy network setup saves you time
- 1,280 x 800 (WXGA) resolution for clear widescreen presentations
- 3,600 lumens brilliance gives bright images and vivid colours for comfortable viewing
- Eco mode reduces power usage and extends lamp life up to 5,000 hours
- Screen directly from a USB device a wide variety of video formats including MPEG4
Specifications
- General
- Ecology
- Supported Os
|
Projection system |
Single chip DLP |
|
Resolution |
WX3351N/WX4241N: 1,280 x 800, X3351N/X4241N: 1,024 x 768 |
|
Panel |
WX3351N/WX4241N: 0.65 inch, X3351N/X4241N: 0.55 inch |
|
Brightness |
WX3351N: 3,600 lumen, X3351N: 3,500 lumen, WX4241N/X4241N: 3,300 lumen |
|
Contrast ratio |
13,000:1 |
|
Projection screen size |
WX3351N: 40"-400" , WX4241N: 60"-400" , X3351N: 30"-400" , X4241N: 50"-400" |
|
Projection distance |
WX3351N: 0.77-12.23 m, WX4241N: 0.61-4.3 m, X3351N: 0.68-14.42 m, X4241N: 0.59-5.08 m |
|
Lamp life |
Standard: 3,500 hours (250 W), Eco mode 1: 5,000 hours |
|
RGB compatible signals - Real display |
WX3351N/WX4241N: WXGA, XGA, SVGA, VGA, X3351N/X4241N: XGA, SVGA, VGA |
|
RGB compatible signals - Compressed representation |
WX3351N/WX4241N: UXGA, SXGA, X3351N/X4241N: UXGA, SXGA, WXGA |
|
Input signals |
NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL-60, 50 Hz (mono), 60 Hz (mono) |
|
Analogue RGB compatible scanning frequency - Horizontal |
15 - 100 kHz |
|
Analogue RGB compatible scanning frequency - Vertical |
23 - 85 Hz |
|
Zoom ratio |
1.5 (WX3351N/X3351N) |
|
Focus |
WX3351N/X3351N: Auto, WX4241N/X4241N: Manual |
|
Connection terminal |
Mini D-SUB15pin x 1 (Computer IN) , Mini D-SUB15pin x 1 (Monitor OUT), RCA_1pin x 1 (Video), Mini Jack x 1 (Audio1 IN/OUT) , USB-TYPE-minB x1, HDMI x 1, RJ-45 x 1 (LAN), USB TYPE-A for PC free presentation |
|
Wireless LAN |
LAN IEEE 802.11b/g/n compliant |
|
Network authentication |
WPA/WPA2-PSK, WPA2-PSK, WPA/WPA2-EAP, WPA2-EAP |
|
Primary features |
Mute (Blank), Freeze, Re-size (Magnify), Auto keystone, Password protection, Key lock, User logo, Eco mode, Carbon meter, Closed captioning, Color Universal Design, 3D Ready, Image Eco, Presentation Timer, Wall Color mode, Security bar, Kensington lock, PC free presentation (still image/video formats JPEG, MPEG2, MPEG4) |
|
Network features |
Multi-screen (1 PC to 4 projectors), Projector management, PJ Link, PENTAX-Ricoh camera projection (USB), Web Image Monitor, DLNA support, Crestron, AMX, Quick Projection software |
|
Built-in speaker |
10 W mono |
|
Dimensions (W x D x H) |
297 x 235 x 100 mm |
|
Weight |
3.1 kg |
|
Power source |
100 - 240 V, 50/60 Hz |
|
Power consumption - Operating power |
316 W |
|
Power consumption - Stand-by mode |
0.3 W |
|
Operating temperature |
5°C - 35°C |
|
Operating humidity |
30% - 70% |
|
Storage conditions - Temperature |
-10°C - 50°C |
|
Storage conditions - Humidity |
15% - 80% |
|
Advanced Network Utility |
Windows Vista SP2 or later, Windows 7, Windows 8, Windows 8.1, Mac OS X |
|
Projection management utility / JPEG conversion utility |
Windows Vista SP2 or later, Windows 7, Windows 8, Windows 8.1 |
|
Quick projection |
Windows Vista, Windows 7, Windows 8, Windows 8.1, Mac OS X Yosemite and Mavericks, Mac OS X 10.7 & 10.8 |
