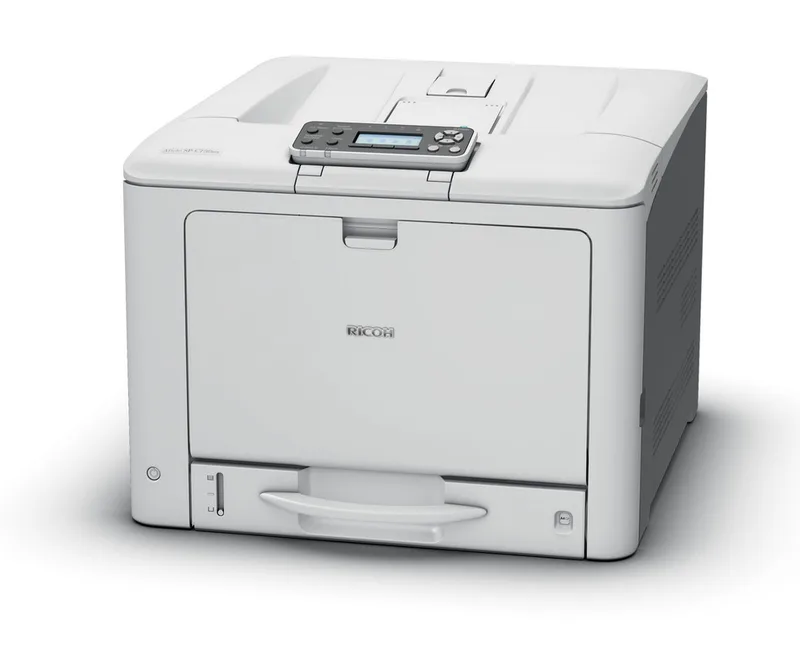

Desktop A3 Colour Laser Printer
Ricoh SPC730DN Color Printer A3
Main Features
Desktop A3 Colour Laser Printer Ricoh SPC730DN is Ricoh’s first desktop A3 colour printer. This high-tech product offers speed, quality and convenience in a small package. With a 1,200 dpi print resolution and fast speeds, you can cover all your colour business printing needs from the comfort of your desktop. At the heart of this A3 printer is Ricoh’s GWNX controller which offers impressive device management. The SP C730DN: small in size, big in performance.
Specification
GENERAL
Technology LED
Warm up time 20 seconds
First print speed B/W: 7.5 sec or less Colour: 9.8 sec or less
Print speed 32 ppm
CPU 533 MHz
Memory Standard: 512 MB Max: 1 GB
Dimensions (W x D x H) 481 x 515 x 360 mm
Weight 40kg
Power source 220 - 240 V, 50/60 Hz
Duty cycle 75,000 prints per month
PRINTER
Printer language Standard: PCL5c, PCL6, Adobe® PostScript® 3™, PDF
Option: IPDS, PictBridge
Print resolution 600 x 600 dpi, 600 x 1,200 dpi equivalent, 600 x 2,400 dpi equivalent, 1,200 x 1,200 dpi
Fonts PCL: TrueType: 45 fonts, International fonts: 13 Intellifonts PS3: TrueType: 136 fonts
Option: IPDS (108 fonts)
Interface Standard: USB 2.0, USB Host I/F, Gigabit Ethernet
Option: Bi-directional IEEE 1284, Wireless LAN (IEEE 802.11a/b/g/n)
Mobile printing capabilityApple AirPrint™
Network protocol TCP/IP, IPX/SPX (Option)
Windows® environmentsWindows® XP, Windows® Vista, Windows® 7, Windows® 8, Windows® Server 2003, Windows® Server 2008,
Windows® Server 2012 Terminal Service/CitrixWindows® Server 2003 + Citrix Meta Frame Presentation Server4.5
Windows® Server 2008 + XenApp5.0 Windows® Server 2008R2 + XenApp6.0 Windows® Server 2008R2 + XenApp6.5
Mac OS environments Macintosh OS X v10.5 or later Novell® Netware® environmentsv6.5 or later
PAPER HANDLING
Paper sizes Standard paper tray(s) : A3*, B4, A4* B5, A5*, B6, A6*, DLT*, Legal*, Letter*, HLT, Executive*, F, Foolscap, Folio*, 8K*, 16K*,
Bypass tray : A3, B4, A4, B5, A5, B6, A6, DLT, Legal, Letter, HLT, Executive, F, Foolscap, Folio, 8K, 16K *Available in dial setting
Paper input capacity Standard: 250 sheets Maximum: 1,850 sheets
Bypass tray: 100 sheets
Optional tray: 500 sheets
Paper output capacity Maximum: 200 sheets
Media capability Plain paper, Middle thick paper, Thick paper 1 to 3, Thin paper, Recycled paper, Special paper 1 to 3, Color paper,
Letterhead, Preprinted, Bond, Cardstock, Label paper, Glossy paper, Coated paper, Envelope* *To feed on bypass
SECURITY
Authentication LDAP authentication, User code authentication, 802.1.x wired authentication
ECOLOGY
Power consumption Maximum: 1,300 W
Ready mode: 50.4 W
Sleep mode: 0.5 W
TEC (Typical Electricity Consumption): 1,668 W/h
SOFTWARE
Standard Web Image Monitor, Desk Top Binder™ Lite, Font Manager 2000 Optional Smart Device Monitor® for Admin/Client,
DeskTopBinder™ Professional,Remote Communication Gate S Pro
OPTIONS
500-sheet paper tray, Hard Disk Drive (160 GB), RAM (1 GB), Bidirectional IEEE 1284, Wireless LAN (IEEE 802.11a/b/g/n), VM Card,
Netware, Pictbridge, IPDS unit
CONSUMABLES
Toner capacityBlack: 9,300 prints
Cyan: 9,300 prints
Magenta: 9,300 prints
Yellow: 9,300 prints
Starter kitBlack: 3,500 prints
Cyan: 3,300 prints
Magenta: 3,300 prints
Yellow: 3,300 prints
Declared yield value in accordance with ISO/IEC 19798 Chart.
