Heavy Duty A3 Printer Black and White

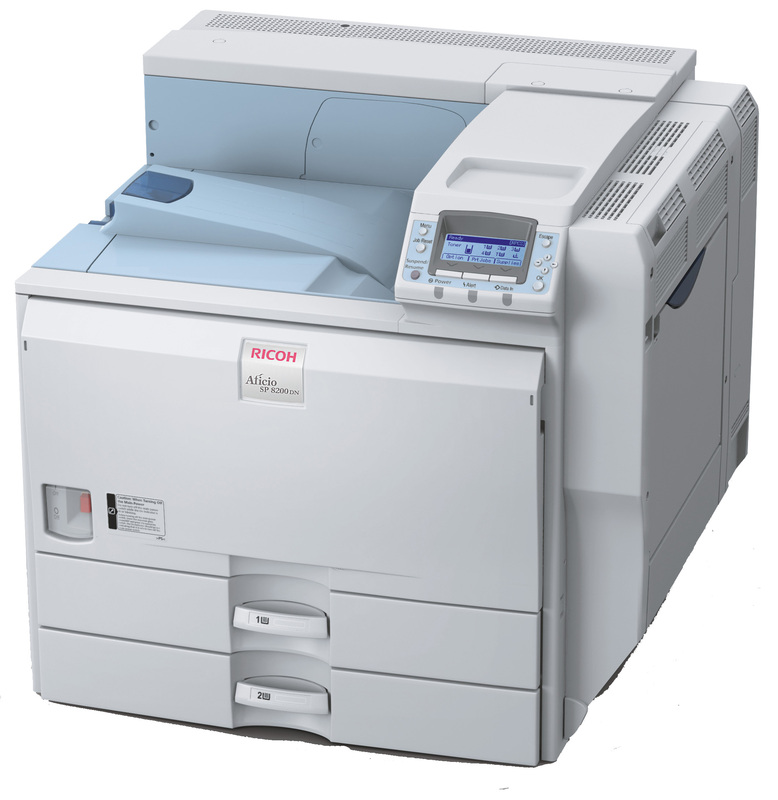

Ricoh SP8200DN
SP 8200DN
SP 8200DN
SP 8200DN
Main Features
Heavy Duty A3 Printer Black and White Ricoh SP8200DN to cope with high print volumes and tight deadlines, you need a reliable partner that delivers uncompromised productivity. Designed to meet your diverse needs, the Ricoh SP 8200DN is ideal for large dedicated volumes and everyday print jobs. With a competitive cost per print and excellent versatility, this device offers best-in-class print performance.
• Super-fast printing at 50 ppm.
• Abundant 4,400-sheet paper capacity.
• Straightforward operation and monitoring.
• Unique security capabilities.
• Host printing capability (IPDS option).
• Peak duty cycle of up to 300,000 pages per month
• Super-fast printing at 50 ppm.
• Abundant 4,400-sheet paper capacity.
• Straightforward operation and monitoring.
• Unique security capabilities.
• Host printing capability (IPDS option).
• Peak duty cycle of up to 300,000 pages per month
Specification
Heavy Duty A3 Printer Black and White Ricoh SP8200DN
GENERAL
Technology : Laser beam scanning, electro photographic printing & dual component toner development
Continuous print speed :50 prints per minute (A4)
Warm up time: Less than 25 seconds
First print speed : Less than 3.5 seconds
Dimensions (W x D x H) : 670 x 677 x 641 mm
Weight : 73 kg
Power source: 220 - 240 V, 50/60 Hz
Power consumption Maximum: 1.42 kW
Energy saver mode: Less than 7 W
Duty cycle: 300,000 pages per month
CONTROLLER
Processor : RM7035C-533L 533 MHz
Printer language/ resolution: PCL5e, Adobe® PostScript® 3™:
300 x 300 dpi/600 x 600 dpi
PCL6, RPCS™:
600 x 600 dpi
Memory Standard: 256 MB
Maximum: 512 MB
Hard Disk Drive (optional): 40 MB
Drivers:
PCL5e/PCL6/RPCS™:
Windows® 2000/XP/Server 2003/Vista
Adobe® PostScript® 3™:
Windows® 2000/XP/Server 2003/Vista
Macintosh OS 8.6 - 9.2.x (OS X Classic)
Macintosh OS X v10.1/10.2/10.3 or later (native mode)
Fonts PCL:
35 intelli fonts
10 true type fonts
1 bitmap font
13 intelli fonts (International Font)
Adobe® PostScript® 3™:
136 fonts
Option: OCR, Barcode
CONNECTIVITY
Network protocol:TCP/IP, IPX/SPX, EtherTalk, IPP, RHPP
Supported networks :
Windows® 2000/XP/Vista/Server 2003
Novell® NetWare® 3.12/3.2/4.1/4.11/5.0/5.1/6/6.5
UNIX Sun® Solaris 2.6/7/8/9
HP-UX 10.x/11.x/11iv1/11i
SCO OpenServer 5.0.6
RedHat® Linux 6.x/7.x/8.0/9/Enterprise
IBM® AIX v4.3 & 5L v5.1/5.2
Macintosh OS 8.6 - 9.2.x (OS X Classic)
Macintosh OS X v10.1/10.2/10.3 or later(native mode)
Interface Standard:
Ethernet 10 base-T/100 baseTX
USB /2.0
Option:
IEEE 1284
IEEE 802.11a/g
Gigabit Ethernet
Additional feature: PDF Direct Print
SOFTWARE
Standard: DeskTopBinder™ Lite, SmartDeviceMonitor™ for Admin/Client, Web SmartDeviceMonitor™, Web Image Monitor, Print utility for Mac, Font Manager 2000
Option : DeskTopBinder Professional
PAPER HANDLING
Paper input capacity Standard:
2 x 550-sheet paper trays
1 x 100-sheet bypass tray
Maximum:
4,400600 sheets
Paper output capacity Standard: 500 sheets face down
Paper size:
Paper trays: A3 - A5
Bypass tray: A3 - A6
Paper weight Paper trays1: 60 - 169 g/m2
Bypass tray: 52 - 220 g/m2
Duplex tray: 60 - 169 g/m2
Media Plain paper, recycled paper, transparencies, laser printer labels, envelopes
CONSUMABLES
Toner Black: 36,000 sheets2
OPTIONS
Internal options : 128/256 MB SDRAM DIMM
40 GB Hard Disk Drive
IEEE 1284
IEEE 802.11a/g
Gigabit Ethernet
Data Overwrite Security Unit
Data Storage Card
IPDS unit
VM Card
HDD Encryption
External options:
2 x 550-sheet paper trays
2,000-sheet large capacity tray
1,200-sheet large capacity tray
1,000-sheet finisher
3,000-sheet finisher
Punch unit (2/3 hole, 2/4 hole, 4 hole)
Bridge unit
Output jogger
1 A maximum of 216 g/m2 can be handled on specific paper types.
2 A4 with 5% coverage.
