Low Cost Small Laser Printer Scanner Copy Fax

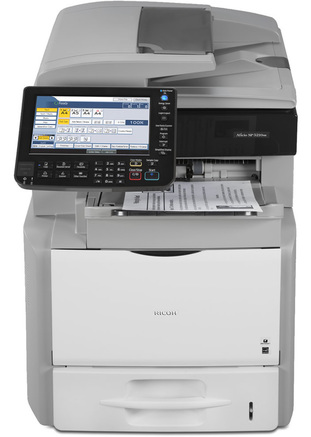

Ricoh SP5210SR
Where space is at a premium, our compact A4 black and white multi-functionals, the Ricoh SP 5200S, Ricoh SP5210SF and Ricoh SP5210SR are ideal. They deliver 4-in-1 printing, copying, scanning and faxing to meet all your document needs. Packed with features usually expected only from larger MFPs, they are smaller but work just as hard. Your busy office or workgroup gets fast, affordable and versatile devices that can expand from desktop models to mighty four-tray, floor-standing powerhouses.You benefit from:
• High speed to maximise productivity
• Compact and easy to operate
• Built-in data security
• Low Total Cost of Ownership (TCO)
• Energy efficient
• High speed to maximise productivity
• Compact and easy to operate
• Built-in data security
• Low Total Cost of Ownership (TCO)
• Energy efficient
- Specifications
Low Cost Small Laser Printer Scanner Copy Fax Ricoh SP5210SR
COPIERS
COPIERS
Copying processLaser beam scanning & electro-photographic printing
Mono-component toner development
Copy speed SP 5200S: 45 copies per minute
SP 5210SF: 50 copies per minute
SP 5210SR: 50 copies per minute
Resolution 600 x 600 dpi
Multiple copy Up to 999
Warm-up time Less than 20 seconds
First copy speed 10 seconds or less
Zoom (in 1% step) Platen: 25 - 400%
ARDF: 25 - 200%
Memory 1GB
Paper input capacity Standard: 550 sheets
Bypass: 100 sheets
Maximum: 2,300 sheets
ARDF capacity 50 sheets
Paper output capacity SP 5200S: up to 500 sheets
SP 5210SF: up to 600 sheets
SP 5210SR: up to 250 sheets
Paper size Standard/Optional tray: A4 - B6
Bypass tray: A4 - B6
ARDF: A4 - B5
Paper weight Standard/ Optional: 52 - 220 g/m²
Bypass: 52 - 220 g/m²
Duplex: 60 - 163 g/m²
Dimensions (W x D x H) SP 5200S: 450 x 510 x 686mm
SP 5210SF: 450 x 510 x 686mm
SP 5210SR: 450 x 615 x 686mm
Weight SP 5200S: Less than 45kg
SP 5210SF: Less than 47kg
SP 5210SR: Less than 53kg
Power source 220 - 240 V, 50 - 60 Hz
Power consumption Maximum: 1500W or less
Energy saver mode: 8W or less
Quick mode (10 seconds): 70 W
Mono-component toner development
Copy speed SP 5200S: 45 copies per minute
SP 5210SF: 50 copies per minute
SP 5210SR: 50 copies per minute
Resolution 600 x 600 dpi
Multiple copy Up to 999
Warm-up time Less than 20 seconds
First copy speed 10 seconds or less
Zoom (in 1% step) Platen: 25 - 400%
ARDF: 25 - 200%
Memory 1GB
Paper input capacity Standard: 550 sheets
Bypass: 100 sheets
Maximum: 2,300 sheets
ARDF capacity 50 sheets
Paper output capacity SP 5200S: up to 500 sheets
SP 5210SF: up to 600 sheets
SP 5210SR: up to 250 sheets
Paper size Standard/Optional tray: A4 - B6
Bypass tray: A4 - B6
ARDF: A4 - B5
Paper weight Standard/ Optional: 52 - 220 g/m²
Bypass: 52 - 220 g/m²
Duplex: 60 - 163 g/m²
Dimensions (W x D x H) SP 5200S: 450 x 510 x 686mm
SP 5210SF: 450 x 510 x 686mm
SP 5210SR: 450 x 615 x 686mm
Weight SP 5200S: Less than 45kg
SP 5210SF: Less than 47kg
SP 5210SR: Less than 53kg
Power source 220 - 240 V, 50 - 60 Hz
Power consumption Maximum: 1500W or less
Energy saver mode: 8W or less
Quick mode (10 seconds): 70 W
PRINTER
Print speed SP 5200S: 45 prints per minute
SP 5210SF: 50 prints per minute
SP 5210SR: 50 prints per minute
First print speed 7.5 sec or less
Duplex Automatic
Printer language PCL5e/6, PostScript® 3, IPDS (Option)
Resolution 1,200 x 600 dpi
Interface Ethernet 10 base-T / 100 base-TX
USB 2.0
Network protocol TCP/IP (IPv4, IPv6), IPX/SPX, Bonjour
Supported environments Windows XP / Vista /7 / Server 2003 /
Server 2008 (32bit, 64bit)
Macintosh OS (v8.6 or later)
Novell Netware (v6.5 or later)
SP 5210SF: 50 prints per minute
SP 5210SR: 50 prints per minute
First print speed 7.5 sec or less
Duplex Automatic
Printer language PCL5e/6, PostScript® 3, IPDS (Option)
Resolution 1,200 x 600 dpi
Interface Ethernet 10 base-T / 100 base-TX
USB 2.0
Network protocol TCP/IP (IPv4, IPv6), IPX/SPX, Bonjour
Supported environments Windows XP / Vista /7 / Server 2003 /
Server 2008 (32bit, 64bit)
Macintosh OS (v8.6 or later)
Novell Netware (v6.5 or later)
SCANNER
Scan speed over30 prints per minute
Resolution 600 dpi (maximum)
Protocol Network: TCP/IP
Scan to Email: POP, SMTP
Scan to folder: SMB, FTP, NCP
Resolution 600 dpi (maximum)
Protocol Network: TCP/IP
Scan to Email: POP, SMTP
Scan to folder: SMB, FTP, NCP
FAX
Circuit PSTN / PBX
Compatibility ITU-T, G3
Modem speed 33.6 K - 2400bps with Auto Fallback
Resolution 200 x 100, 200 x 200, 200 x 400, 400 x 400 (with optional memory)
Compression method MH, MR, MMR, JBIG
Scanning speed (sec) Platen: Less than 2 seconds
ARDF: Less than 1 second
Scanning speed (ppm) 40ppm (A4/LT SEF)
Memory capcity approx 320 pages
Memory backup 1 hour
Compatibility ITU-T, G3
Modem speed 33.6 K - 2400bps with Auto Fallback
Resolution 200 x 100, 200 x 200, 200 x 400, 400 x 400 (with optional memory)
Compression method MH, MR, MMR, JBIG
Scanning speed (sec) Platen: Less than 2 seconds
ARDF: Less than 1 second
Scanning speed (ppm) 40ppm (A4/LT SEF)
Memory capcity approx 320 pages
Memory backup 1 hour
CONSUMABLES
TonerBlack: 25,000 prints1
Staple set and refill
Staple set and refill
OTHER OPTIONS
550-sheet paper tray2
550-sheet paper tray with caster2
IPDS option
IEEE 802.11a/g interface unit
Gigabit Ethernet Board
Bluetooth Interface Unit
Memory unit type B (32MB)
Fax option (for SP 5200S/ SP 5210SR)
1 Toner yield measurement is based on IS019752.
2 Please consult your local Ricoh supplier for configuration options.
For availability of models, options and software,
please contact your local Ricoh supplier.
All brand and/or product names are trademarks of their respective owners.
Specifications are subject to change without prior notice.
