S02BDS5A811E OPS, i5-10400, 8G RAM, 128G SSD, Win10 IoT Enterprise
OPS On Board Computer (Intel CoreTMI i5/8G RAM/128G SSD)

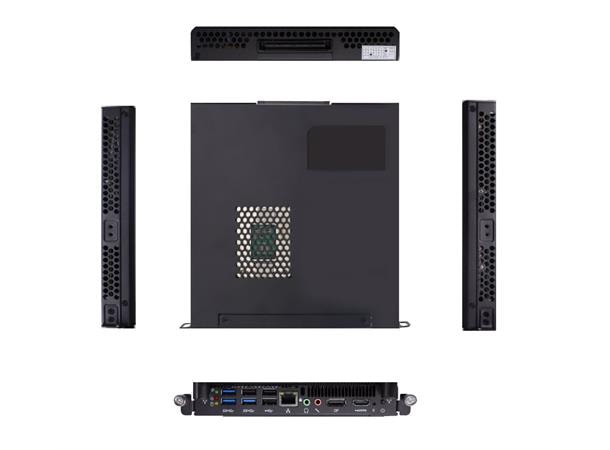

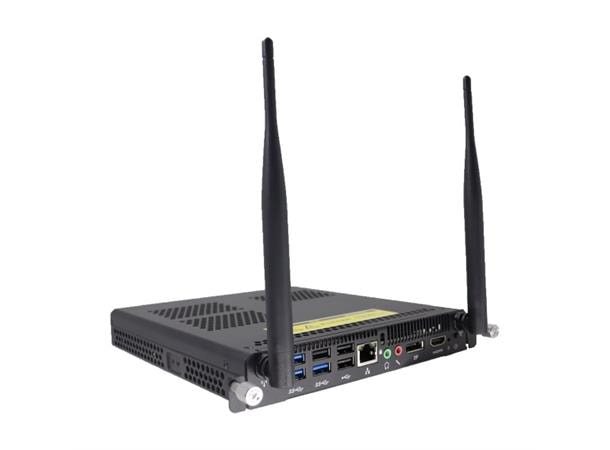

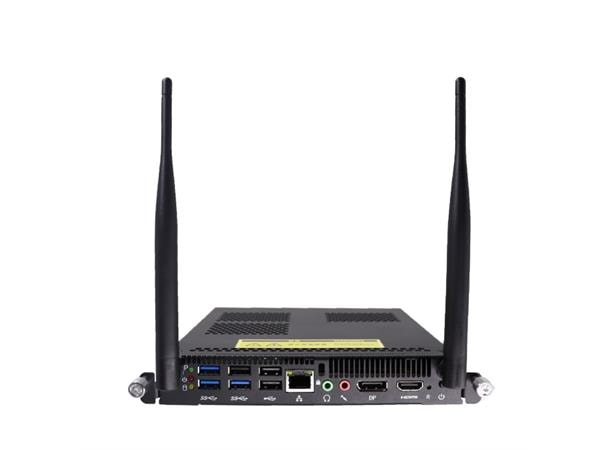

OPS On-Board Computer
Hisense Interactive displays comes with an OPS slot (open pluggable specification) giving you the ability to integrate a computer directly in to the display. The integrated OPS computer utilises powerful Intel i5 processors to bring you all the power of a desktop computer within the interactive display maximising its versatility and compatibility.
Hisense Interactive displays comes with an OPS slot (open pluggable specification) giving you the ability to integrate a computer directly in to the display. The integrated OPS computer utilises powerful Intel i5 processors to bring you all the power of a desktop computer within the interactive display maximising its versatility and compatibility.
- Specifications
- Brochure
- Key Features
|
RAM |
SONY IMX415 1/2.8 |
|
SSD |
8GB |
|
System |
Win10 Iot Enterprise LTSC or Win 11 Pro |
|
Power Supply Mode |
Internal Power |
|
Power Requirements |
12V-19V DC |
|
Max Power |
95W |
|
Standby Power |
0.5W |
|
Colour |
Black |
|
Dimension |
L*W*H: 180*195*30(mm) |
|
Operation Temperature: |
0 - 40 |
|
Operation Humidity |
10%-90% |
|
Storage Temperature: |
-20 - 60 |
|
Storage Humidity |
10% - 90% |
|
LAN |
Integrated 10/100/1000M |
|
WiFi |
WiFi5 11ac |
MSATA System Disk
- Support quick start of MSATA system disk and one click restore to enhance user experience.
10th Generation CPU
- 10th Generation Intel desktop CoreTM CPU.
Update System to Win10 Iot Enterprise LTSC or Win 11 Pro
- Windows Enterprise is a streamlined operating system that is designed for use on Internet of Things (IoT) devices.
HD Graphics
- The standard Intel HD graphics 630 integrated graphics card supports h.265 and 4K.
Support Bluetooth 4.2
- Version 4.2 makes Bluetooth smarter, faster and the ideal wireless technology supporting up to 1Mbps.
Support WiFi 5 and Wired Network
- Wifi 5 or IEEE 802.11ac is the fifth generation of wireless networking standards in the IEEE 802.11 set of standards which provides high throughput in a wireless local area network (LAN)
