Black & White Production Printer A3+

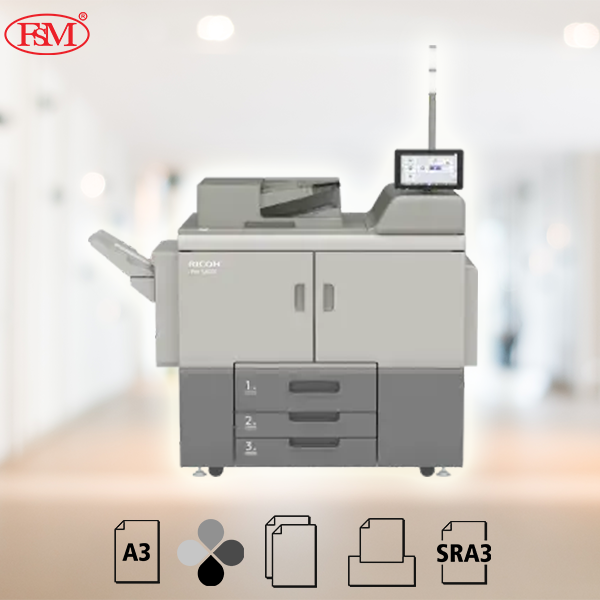

Ricoh Pro 8400s

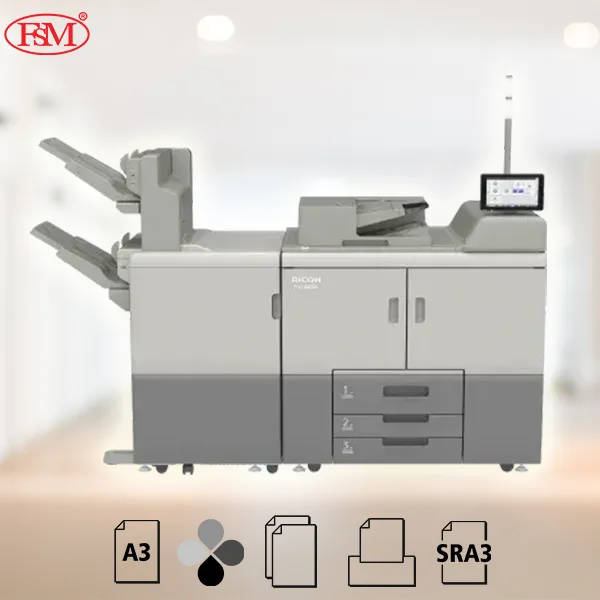

Ricoh Pro 8400s printing interface in operation

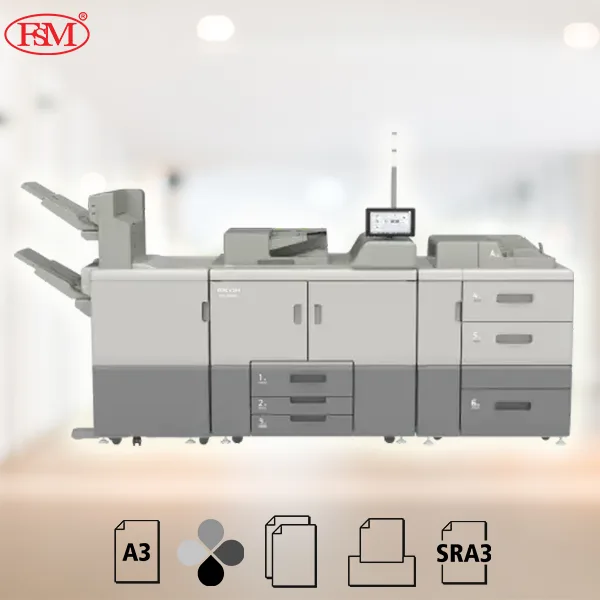

Ricoh Pro 8400s full system setup with paper trays

Black and White Production Printer

Print black and white documents at speeds of up to 136 ppm
Maintain full productivity across all supported media weights
Enjoy uninterrupted production with dynamic tray and toner switching
Paper supply expands to 17,000 sheets from ten pick points

The Highly Reliable Mono Sheetfed Device to Expand Your Business With New Versatile Printing and Finishing Capabilities.

The Pro 8400s Series is a family of monochrome sheetfed production printers. A fourth generation design, the new presses enhance their predecessors’ matchless reputation for quality and reliability while setting new standards for security, sustainability, and performance.

Key Features

Ricoh Pro 8400s high resolution image quality

Enjoy Flawless Image Quality

Elevate quality with an advanced monochrome production system from Ricoh. Our cutting edge VCSEL imaging technology and enhanced toner deliver sharp text and smooth halftones at 2400 x 4800 dpi resolution.

Ricoh Pro 8400s media support up to 350 gsm

Expand Your Media Capabilities

Ready to help you grow monochrome volumes, these systems support media up to 350 gsm. Say yes to more jobs while freeing valuable capacity on colour printers.

Ricoh Pro 8400s fast maintenance and uptime features

Maximise Uptime, Enhance Productivity

Optimise system uptime with our smart support features. On-screen animations, LED guidance, and internal purge trays make clearing misfeeds simple and fast.

Ricoh Pro 8400s workflow adaptability for business printing

Empower Every Workflow

Because every production workflow is different, the sheetfed presses can be tailored to a variety of print needs, including office, commercial, and data printing.

Specification
Video
Brochure

Specifications

Explore the details that define this product's capabilities. See the specs that matter most to you.

GENERAL

Configuration : Console
Technology : 1-drum dry electrostatic transfer system with internal transfer belt
Fusing : Oil-less, belt fusing method
Toner type : Newly formulated pulverized toner, New chemical toner, PxP™ Polymerised chemical toner
Continuous print speed : 96 ppm
Resolution : Maximum: 2,400 x 2,800 dpi, Scan: 100 x 1,200 dpi, Print: 1,200 x1,200 dpi
Warm-up time : 300 seconds
Dimensions (W x D x H) : 1,141 x 900 x 1,397 mm
Weight : 428 kg
Power source : 220 - 240 V, 50/60 Hz, 20 A
Duty cycle (per month) : 2,900,000 pages

SCANNER

Resolution : 100 dpi, 150 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi, Default: 200 dpi
Maximum scan area : 297 x 420 mm

PAPER HANDLING

Paper input capacity : Standard 1st tray: 2,200 sheets, Standard 2nd tray: 550 sheets, Standard 3rd tray: 550 sheets, Optional A4/LT LCT 4th tray: 1,100 sheets, Optional A4/LT LCT 5th tray: 1,100 sheets, Optional A4/LT LCT 6th tray: 2,800 sheets, Optional A3/DLT LCT 4th tray: 1,100 sheets, Optional A3/DLT LCT 5th tray: 2,200 sheets, Optional A3/DLT LCT 6th tray: 1,100 sheets, Optional bypass tray: 500 sheets, Optional vacuum feed LCT T1 tray: 2,200 sheets, Optional vacuum feed LCT T2 tray: 2,200 sheets
Maximum input capacity : 17,000 sheets
Maximum output capacity : 14,500 sheets
Paper size : Maximum: 330.2 x 487.7 mm, A6 - SRA3
Printable area : 320 x 700 mm
Paper weight : Standard 1st tray: 52 - 256 g/m², Standard 2nd tray: 52 - 256 g/m², Standard 3rd tray: 52 - 256 g/m², Optional A4/LT LCT 4th tray: 52 - 216 g/m², Optional A4/LT LCT 5th tray: 52 - 216 g/m², Optional A4/LT LCT 6th tray: 52 - 163 g/m², Optional A3/DLT LCT 4th tray: 52 - 256 g/m², Optional A3/DLT LCT 5th tray: 52 - 300 g/m², Optional A3/DLT LCT 6th tray: 52 - 256 g/m², Optional bypass tray: 52 - 220 g/m², Optional vacuum feed LCT T1 tray: 52 - 300 g/m², Optional vacuum feed LCT T2 tray: 52 - 300 g/m²

Download Now

Fotostat Seri Murni Sdn Bhd · Production B&W Visual Configurator

RICOH Pro 8400S Configurator

Configure the RICOH Pro 8400 production series visually. Choose Pro 8400S, Pro 8410S or Pro 8420S, then add paper handling, production finishing and controller options before sending the complete configuration to Fotostat Seri Murni for quotation.

96 pages per minute · A4

RICOH Pro 8400 series production printer

RICOH Pro 8400S Black & White Production MFP

Pro 8400S Production Performance

High-volume monochrome production with 2,400 × 4,800 dpi VCSEL imaging, heavy-media support up to 350 g/m² and extensive inline finishing.

FunctionsPrint · Copy · Scan
Print speed96 ppm
Recommended volume95,000 / month
Maximum monthly volume1,000,000
Standard input3,300 sheets
Maximum input8,850 sheets
Max paper size330.2 × 700 mm
Max media weight350 g/m²
Resolution2,400 × 4,800 dpi
Storage640 GB · 320 GB × 2
Dimensions1,141 × 900 × 1,397 mm
Weight428 kg
Power220–240 V · 50/60 Hz
Panel10.1-inch Smart Operation Panel

Production B&W configuration workspace: this simplified configurator combines the three S-models into one sales tool. Model-specific finisher choices are automatically enabled or disabled when the selected main unit changes.

1

Main Unit Choose 1

Select the production speed that matches the customer's monthly workload.

Pro 8400S is the compact 96 ppm model. Pro 8410S and Pro 8420S use the higher-volume finishing platform.

2

Additional Paper Sources

Select one major LCIT path and compatible bypass / banner accessories.

Primary optional paper source

Paper-feed accessories

RT5160, RT5170 and Vacuum Feed LCIT RT5150 are alternative major feed paths.

3

Production Finishing Choose 1

Available finishers change according to the selected main unit.

Primary output / finishing system

Inline / finisher accessories

Select a finishing path to complete the system.

4

Printer Controller Choose 1

Use the standard GWNX controller or add Fiery EB-36 for graphic-intensive production.

Fiery EB-36 is an external FS600 Pro controller. Genuine Adobe PostScript3 Type S16 is available for GWNX workflows.

5

Print, Scan & Network Options

Add Genuine Adobe PostScript, Wi-Fi, IPDS and production workflow features.

6

Your Contact Details

Optional, but useful when requesting a production-print quotation.

Name

Company

Phone / WhatsApp

Email

Production Requirements / Remarks

Your Configuration & Request Quote

0 options

RICOH Pro 8400S 96 ppm · Production B&W MFP · Print / Copy / Scan

Simplified customer-facing production configurator. Final Malaysia item codes, local power requirements for accessories, Fiery licensing, installation footprint, option compatibility and pricing must be confirmed by Fotostat Seri Murni Sdn Bhd.
