Ricoh Large Format Printer Latex Ink For Outdoor and Indoor Printing

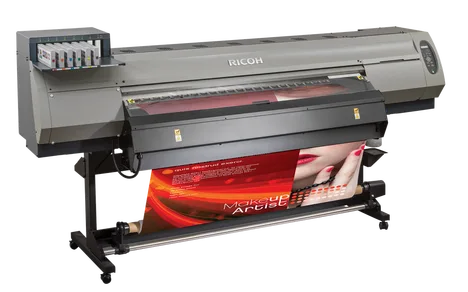

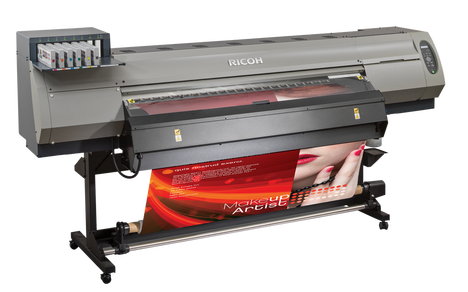

Ricoh Pro L4160
Overview
Want to grow your business in every direction? With the new Ricoh large format printer Ricoh Pro L4160 you can do just that. Thanks to the latest Ricoh technology and eco-friendly durable latex inks, you can dramatically expand your offering for indoor and outdoor use.
- Main Features
- Specifications
The new RICOH Pro L4160 is the perfect solution when you want to complement your offering with display printing.
Hugely versatile, these printers will give you a wide variety of display material in high quality colour, thanks to the RICOH GEN5 print heads. By using the latest patented multidrop jetting technology, these heads can create a droplet as small as four picoliters, resulting in smoother colour gradation. What’s more, with the addition of orange and green inks, you’ll also benefit from brighter images as well as a greater colour gamut – up to 93% of the Pantone range, allowing the reproduction of corporate colours accurately. The option of white ink also allows for a wider range of applications to be printed, for example, transparent stickers and clear backlit films – creating endless possibilities for graphic arts displays and prints.
Durable inks for inside and out
The Pro L4160 uses eco-friendly, durable latex inks, which are suitable for both indoor and outdoor use. Prints can last up to two years under most conditions as a result of the anti-fade qualities and weatherproof qualities. Latex inks produce minimal volatile organic compounds and hazardous air particles, making them safe to use even indoors, without the need of any special air ventilation. Cartridges are also reusable, reducing waste and saving money. Printing has never been more environmentally-friendly.
Print on almost anything
With a low curing temperature, a wide variety of media such as films, textiles, vinyl and papers can be printed on. Also, a maximum output of 18.2m2/hr means the best productivity in its class. Productivity is further amplified by the built-in heaters and fans, eliminating waiting for secondary processes as drying is instantaneous. Maximum productivity and efficiency is possible with the RICOH Pro L4160.
Hugely versatile, these printers will give you a wide variety of display material in high quality colour, thanks to the RICOH GEN5 print heads. By using the latest patented multidrop jetting technology, these heads can create a droplet as small as four picoliters, resulting in smoother colour gradation. What’s more, with the addition of orange and green inks, you’ll also benefit from brighter images as well as a greater colour gamut – up to 93% of the Pantone range, allowing the reproduction of corporate colours accurately. The option of white ink also allows for a wider range of applications to be printed, for example, transparent stickers and clear backlit films – creating endless possibilities for graphic arts displays and prints.
Durable inks for inside and out
The Pro L4160 uses eco-friendly, durable latex inks, which are suitable for both indoor and outdoor use. Prints can last up to two years under most conditions as a result of the anti-fade qualities and weatherproof qualities. Latex inks produce minimal volatile organic compounds and hazardous air particles, making them safe to use even indoors, without the need of any special air ventilation. Cartridges are also reusable, reducing waste and saving money. Printing has never been more environmentally-friendly.
Print on almost anything
With a low curing temperature, a wide variety of media such as films, textiles, vinyl and papers can be printed on. Also, a maximum output of 18.2m2/hr means the best productivity in its class. Productivity is further amplified by the built-in heaters and fans, eliminating waiting for secondary processes as drying is instantaneous. Maximum productivity and efficiency is possible with the RICOH Pro L4160.
INK TYPE
Aquaous Durable (Latex) Ink
INK COLOURS
Cyan, Magenta, Yellow, Black, Orange, Green, White
INK SET COMBINATIONS
4-color mode (CMYKCMYK)
6-color mode (CCMMYKOrGr)
7-color mode (CMYKOrGrWW)
6-color mode (CCMMYKOrGr)
7-color mode (CMYKOrGrWW)
INK CARTRIDGE CAPACITY
CMYKOrGr 600cc, White 220cc
PRINTER
Technology
Max print speed
Max Print Resolution
Print mode
Margins
Print heads
Nozzles
Max print speed
Max Print Resolution
Print mode
Margins
Print heads
Nozzles
Piezo Inkjet
18.2 m2/hr
1200 x 1200 dpi
Min: 6-pass bidirectional: 18.2 m2/hr
Max: 32-pass bidirectional: 3.3 m2/hr
Roll Paper
Left and right end: 15mm (default)
Front: 150mm
Rear: 0mm
Roll Paper
Left and right end: 15mm (default)
Front: 150mm
Rear: 200mm
Ricoh Gen5 Piezo print head -
2 per 1 printer
1280 nozzles per 1 head,
Total 2560 nozzels
18.2 m2/hr
1200 x 1200 dpi
Min: 6-pass bidirectional: 18.2 m2/hr
Max: 32-pass bidirectional: 3.3 m2/hr
Roll Paper
Left and right end: 15mm (default)
Front: 150mm
Rear: 0mm
Roll Paper
Left and right end: 15mm (default)
Front: 150mm
Rear: 200mm
Ricoh Gen5 Piezo print head -
2 per 1 printer
1280 nozzles per 1 head,
Total 2560 nozzels
DIMENSION (WxDxH) / WEIGHT
2879mm x 854mm x 1435mm / 240kg
POWER SUPPLY
Input power
Dimensions (W x D x H)
Power consumption
(Active printing)
Dimensions (W x D x H)
Power consumption
(Active printing)
100-120V 50-60Hz, 200-240V 50-60Hz,
12A or less x 2 lines
1,080 x 637 x 580 mm
Up to 1.44kW x 2 (100V-120V),
1.8kW x 2 (220V-240V)
12A or less x 2 lines
1,080 x 637 x 580 mm
Up to 1.44kW x 2 (100V-120V),
1.8kW x 2 (220V-240V)
OPERATING ENVIRONMENT
Temperature
Humidity
Humidity
20°C to 30°C (68F - 86F)
12A or less x 2 lines
35% to 65% (non-condensation)
12A or less x 2 lines
35% to 65% (non-condensation)
ACOUSTIC
Standby
Printing
Printing
58dB or less
65dB or less continuous sound
75dB or less discontinuous sound
65dB or less continuous sound
75dB or less discontinuous sound
MEDIA HANDLING
Max media thickness
Max roll outer diameter:
Media core size
Media width
Max printable length
Max roll outer diameter:
Media core size
Media width
Max printable length
(Roll paper) 0.3mm
(Roll paper) 180mm
(Roll paper) 2 inches or 3 inches
(Roll paper) Max 1,371mm/ Min 210mm
(Cut sheet) Max 1,620mm/ Min 210mm
1,610mm
(Roll paper) 180mm
(Roll paper) 2 inches or 3 inches
(Roll paper) Max 1,371mm/ Min 210mm
(Cut sheet) Max 1,620mm/ Min 210mm
1,610mm
PC SPECIFICATIONS
Windows Vista SP2 or later (32 bit/ 64 bit)/
Windows 7 (32 bit/ 64 bit)
CPU: Intel core 2Duo 1.8GHz or more
Memory: 1GB
CONFIGURATION/ INTERFACE
USB Connection (5 metres recommended)
PRODUCTION SERVER
*ColorGATE PS8 (Adobe PDF print engine)
Ricoh software RIP
*Option as separate
For availability of models, optional apparatus and software,
please contact your local Ricoh representative.
All brand and/or product names are trademarks of their respective owners.
Specifications are subject to change without prior notice.
Windows 7 (32 bit/ 64 bit)
CPU: Intel core 2Duo 1.8GHz or more
Memory: 1GB
CONFIGURATION/ INTERFACE
USB Connection (5 metres recommended)
PRODUCTION SERVER
*ColorGATE PS8 (Adobe PDF print engine)
Ricoh software RIP
*Option as separate
For availability of models, optional apparatus and software,
please contact your local Ricoh representative.
All brand and/or product names are trademarks of their respective owners.
Specifications are subject to change without prior notice.
