Latex Large Format Printer Ricoh For Outdoor and Indoor Printing

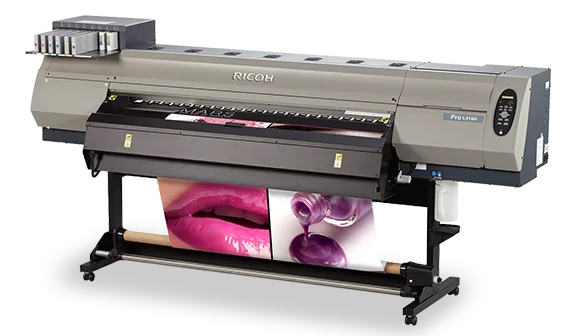

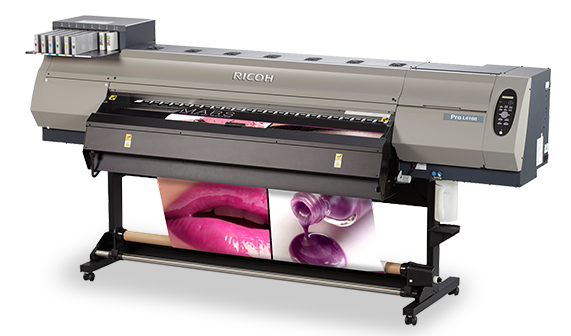

Ricoh Pro L4130
Overview
Want to grow your business in every direction? With the new Ricoh Pro L4130 you can do just that. Thanks to the latest Ricoh technology and eco-friendly durable latex inks, you can dramatically expand your offering for indoor and outdoor use.
Want to grow your business in every direction? With the new Ricoh Pro L4130 you can do just that. Thanks to the latest Ricoh technology and eco-friendly durable latex inks, you can dramatically expand your offering for indoor and outdoor use.
- Main Features
- Specifications
- New wider colour gamut
- Enhanced productivity
- Less drying time
- Eco-friendly
- Low energy power consumption
GENERAL
Ink Type:
Head Type:
Print Speed:
Resolution:
Dimensions (W x D x H):
Weight:
Power Source:
Power Consumption:
Head Type:
Print Speed:
Resolution:
Dimensions (W x D x H):
Weight:
Power Source:
Power Consumption:
AR (Aqua Resin) Ricoh Durable Latex ink
Ricoh GEN5 high-speed piezo durable print heads
Pro L4130: 4-colour mode.
4 pass: Super Draft 29.5 m2/h
6 pass: Draft 17.1 m2/h
8 pass: High Speed 13.0 m2/h
12 pass: Standard 10.3 m2/h
16 pass: High Quality 6.3 m2/h
Pro L4130:
6-colour mode/6-colour mode + white
8 pass: Super Draft 15.8 m2/h
12 pass: Draft 8.7 m2/h
16 pass: High Speed 6.6 m2/h
24 pass: Standard 5.1 m2/h
32 pass: High Quality 3.2 m2/h
600, 900, 1200dpi
2634mm x 854mm x 1435mm
216kg
1800W x 2 (220-240V)
Less than 1440W x 2 (100-120V)
Ricoh GEN5 high-speed piezo durable print heads
Pro L4130: 4-colour mode.
4 pass: Super Draft 29.5 m2/h
6 pass: Draft 17.1 m2/h
8 pass: High Speed 13.0 m2/h
12 pass: Standard 10.3 m2/h
16 pass: High Quality 6.3 m2/h
Pro L4130:
6-colour mode/6-colour mode + white
8 pass: Super Draft 15.8 m2/h
12 pass: Draft 8.7 m2/h
16 pass: High Speed 6.6 m2/h
24 pass: Standard 5.1 m2/h
32 pass: High Quality 3.2 m2/h
600, 900, 1200dpi
2634mm x 854mm x 1435mm
216kg
1800W x 2 (220-240V)
Less than 1440W x 2 (100-120V)
INK SET
Ink Set Combinations:
Droplet Size:
Ink Capacity:
Droplet Size:
Ink Capacity:
4-colour mode (CMYK)
6-colour mode (CMYKOrGr)
6-colour+white mode (CMYKOrGrW)
4pl
4-colours: CMYK
(600cc two cartridges for each colour)
6-colours: CMYKOrGr
(600cc one cartridge for Y, K, Or, and Gr colour, 600cc two cartridges for C and M colour)
6-colours and White: CMYKOrGrW
(600cc one cartridge for CMYKOrGr colour, 220cc two cartridges for White)
6-colour mode (CMYKOrGr)
6-colour+white mode (CMYKOrGrW)
4pl
4-colours: CMYK
(600cc two cartridges for each colour)
6-colours: CMYKOrGr
(600cc one cartridge for Y, K, Or, and Gr colour, 600cc two cartridges for C and M colour)
6-colours and White: CMYKOrGrW
(600cc one cartridge for CMYKOrGr colour, 220cc two cartridges for White)
MEDIA
Media Options:
Curing Time:
Maximum Paper Width:
Maximum Media Width:
Curing Time:
Maximum Paper Width:
Maximum Media Width:
Wide ranging media compatibility which includes thin coated paper, Synthetic Paper, PET, tarpaulin, weatherproof PVC, window film, polyester and cotton. Thickness 0.3mm or less.
Fast curing for secondary processing such as lamination.
1361mm
1371mm
Fast curing for secondary processing such as lamination.
1361mm
1371mm
COLOUR RIPS
Ricoh Software RIP (Professional and advanced colour management - in bundle with mainframe)
CPU: Intel Core i3 3.10GHz or more
CPU: Intel Core i3 3.10GHz or more
Operating System:
Chip set:
Memory:
HDD:
Network Interface:
Chip set:
Memory:
HDD:
Network Interface:
Printer Driver Windows Vista SP2 or later (32/64 bit), Windows 7 Professional, Ultimate, Enterprise (32/64 bit), Windows8 Pro Enterprise XP Professional Edition (32 bit) SP3~, XP Home Edition (32 bit) SP3~
Intel chip set
3GB or more (32 bit), 6GB or more (64 bit)
500GB recommended (NTFS format)
Ethernet, USB 1.1/2.0
Intel chip set
3GB or more (32 bit), 6GB or more (64 bit)
500GB recommended (NTFS format)
Ethernet, USB 1.1/2.0
Additional third-party RIP’s available ColorGATE PS9 Productionserver
ColorGATE PS9: Intuitive control and user interface
(Adobe PDF print engine)
Optimal colour reproduction
High quality modular components
Maximum productivity
ColorGATE PS9: Intuitive control and user interface
(Adobe PDF print engine)
Optimal colour reproduction
High quality modular components
Maximum productivity
PC SPECIFICATIONS
Operating System:
CPU:
Memory:
Configuration / Interface:
CPU:
Memory:
Configuration / Interface:
Windows Vista SP2 or latter (32bit/64bit), Windows7 Professional/ Ultimate/Enterprise (32bit/64bit), Windows8 Professional/Enterprise (32bit/64bit), XP Professional Edition(32bit) SP3~, XP Home Edition(32bit) SP3~
Intel Core i3 3.1GHz or more
2GB or more (32bit),
3GB or more (64bit)
Ether Net, USB 1.1/2.0
Intel Core i3 3.1GHz or more
2GB or more (32bit),
3GB or more (64bit)
Ether Net, USB 1.1/2.0
ENVIRONMENTAL INFORMATION
Environmental: New aqueous durable (latex) inks have very low emissions of VOCs (volatile organic compounds) and lack of odour requiring no ventilation. Ink cartridges can be used repeatedly, reducing waste and cost.
