ADF and Flatbed Scanner Auto Feed Document

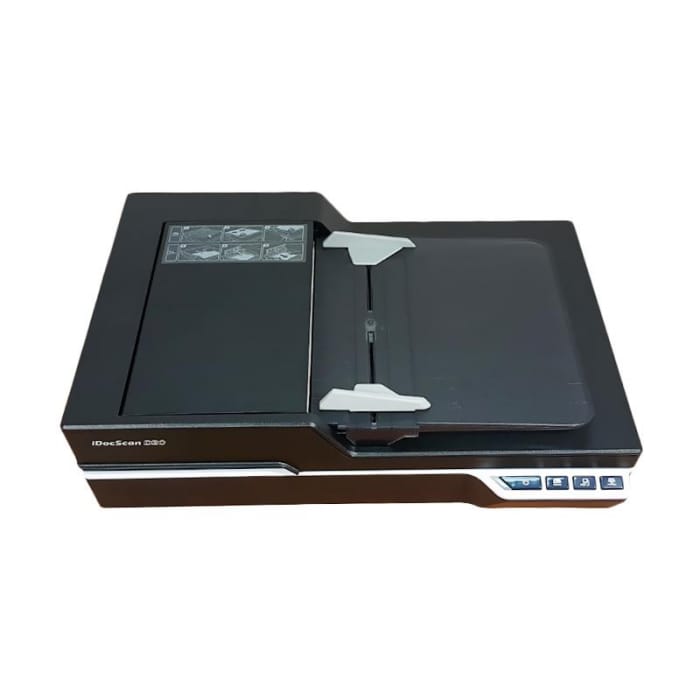

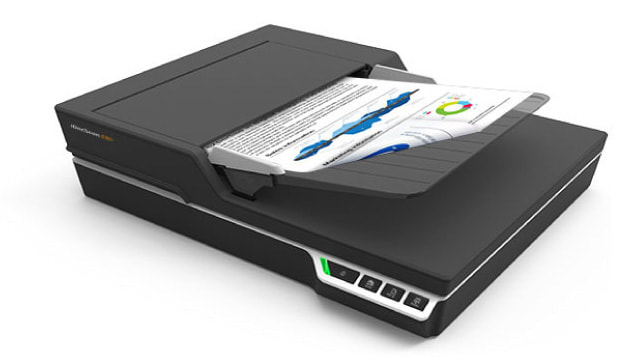

Mustek iDocScan D50
Features and Benefits
ADF and Flatbed Scanner Auto Feed Document Mustek iDocScan D50 is a high reliable document scanner, it has the enhancement features like blank page removal and image deskew, which ensure reliability and productivity in high-volume duplex scanning up to 50ppm/100ipm. An innovative ultrasonic sensor with high detection accuracy helps prevent multi-feed of sheets. Additional flatbed can scan delicate or bound materials up to 1200 dpi optical resolution.
Specification
- General
- ADF (Automatic Document Feeder)
|
Image Sensor Type |
Color CIS (Contact Image Sensor) x 2 |
|
Image Processing Function |
De-skew, Auto Crop, 2-Sided merge, Auto Color Detection, Text Orientation, Multi-Color Output, Blank Page Removal, Dropout Color (R.G.B), Punch Hole Removal, De-screen, Unsharp Mask, Edge Correction, Invert, Auto Threshold, Manual Threshold, Halftone. |
|
Environmental Compatibility |
ENERGY STAR® |
|
Compatibility |
TWAIN Compliant (for Windows XP / Vista / 7 / 8 / 10) WIA Compliant (for Windows 7 / 8 / 10 only) |
|
Dimension |
L430 mm x W334 mm x D100 mm (L16.9” x W13.15” x D3.94”) |
|
Weight |
4.5 kgs (9.92lbs) |
|
Power Supply |
12V/2A (Input : 100V ~ 240V, 50/60Hz) |
|
ADF Power Consumption |
Power Off < 5W Stand by <4W Operating < 13W |
|
Operation Temperature |
10 °C - 35 °C (59 °F - 95 °F) |
|
Scan Speed |
50ppm/100ipm (color, 200 dpi, A4, 70 g/m2 ) 50ppm/100ipm (gray, 200 dpi, A4, 70 g/m2 ) 50ppm/100ipm (B&W, 200 dpi, A4, 70 g/m2 ) * Scanning speeds may vary depending on scanning applications software used, computer processor, and system memory. |
|
Automatic Document Feeder Capacity |
60 pages at 80 g/m2 (21 lb) *Maximum capacity varies, depending upon paper weight. |
|
Scanning Side |
Duplex (double sided) and Simplex (single sided) |
|
Input Tray Width |
9.5" (242 mm) |
|
Scan Area |
Max. W216mm x L356mm (W8.5” x L14”) Min. W50mm x 90mm (W2” x L3.5”) |
|
Scan Size |
Auto A4 (W210mm x L297mm / W8.3” x L11.7”) A5 (W149mm x L210mm / W5.9” x L8.3”) B5 (W176mm x L250mm / W6.9”xL9.8”) Letter (W216mm x L279mm / 8.5” x 11”) Name Card (W55mm / W2.2”) Long Sheet (W216mm x L635 mm / W8.5” x L25”) |
|
Paper Thickness & Weight |
30~130g/m² (8 to 34 lb) |
|
Optical Resolution |
600 dpi |
|
Daily Duty Cycle |
3000 sheets |
|
Separation Pad Lifetime |
30000 Scans |
