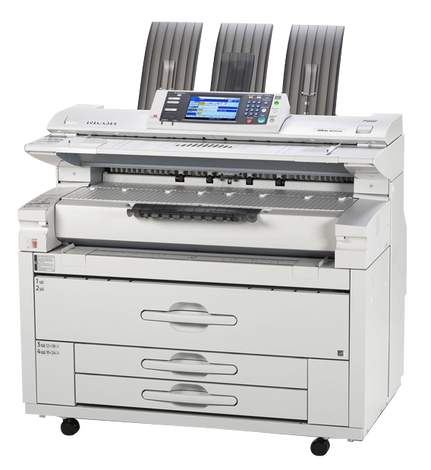

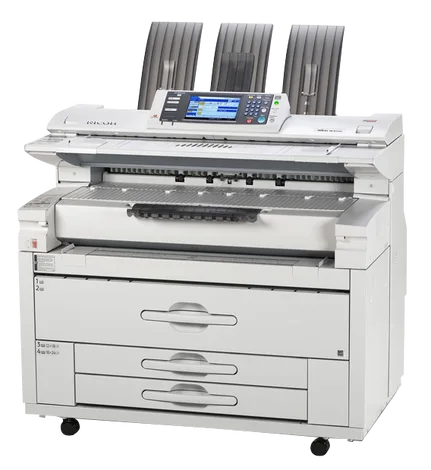

AFICIO MP W3601
Overview
The MP W2401/MP W3601 provide the dream combination: affordable wide-format document production in a compact footprint. You can securely copy, scan, distribute and archive with one surprisingly compact unit. With their top-of-the-range optional colour scanner and speed of 6.4 A1 pages per minute (MP W3601), these devices offer productivity improvements for the busy office. You can process a variety of paper sizes from A4 up to A0: opt for the two roll configuration or the additional 250-sheet paper cassette (up to A3).
The MP W2401/MP W3601 provide the dream combination: affordable wide-format document production in a compact footprint. You can securely copy, scan, distribute and archive with one surprisingly compact unit. With their top-of-the-range optional colour scanner and speed of 6.4 A1 pages per minute (MP W3601), these devices offer productivity improvements for the busy office. You can process a variety of paper sizes from A4 up to A0: opt for the two roll configuration or the additional 250-sheet paper cassette (up to A3).
- Specifications
- Main Features
COPIER
Copying process
Copy speed
Resolution
Multiple copy
Warm-up time
First output speed
Reduction/enlargement
Zoom
Memory
Paper input capacity
Paper output capacity
Paper size
Paper weight
Dimensions (W x D x H)
Weight
Power source
Power consumption
Copy speed
Resolution
Multiple copy
Warm-up time
First output speed
Reduction/enlargement
Zoom
Memory
Paper input capacity
Paper output capacity
Paper size
Paper weight
Dimensions (W x D x H)
Weight
Power source
Power consumption
Electro photographic printing
3.4/6.4 copies per minute (A0-A1)
Maximum: 600 dpi
Up to 99 (ten key input)
Less than 2 minutes
Less than 21 seconds (A1)
4R/4E
25 - 400% (in 0.1% steps)
1,024 MB + 160 GB Hard Disk Drive
1-sheet bypass tray
2 Roll Feeder (option)
250-sheet paper cassette (option)
Top 50 sheets A1 (plain paper)
Bottom 40 sheets A0 (plain paper)
Minimum 210 x 210 mm
Maximum 914 x 15,000 mm
64 - 105 g/m²
1,080 x 637 x 580 mm
Less than 107 kg
220 - 240 V, 50/60 Hz
Less than 1.84 kW
3.4/6.4 copies per minute (A0-A1)
Maximum: 600 dpi
Up to 99 (ten key input)
Less than 2 minutes
Less than 21 seconds (A1)
4R/4E
25 - 400% (in 0.1% steps)
1,024 MB + 160 GB Hard Disk Drive
1-sheet bypass tray
2 Roll Feeder (option)
250-sheet paper cassette (option)
Top 50 sheets A1 (plain paper)
Bottom 40 sheets A0 (plain paper)
Minimum 210 x 210 mm
Maximum 914 x 15,000 mm
64 - 105 g/m²
1,080 x 637 x 580 mm
Less than 107 kg
220 - 240 V, 50/60 Hz
Less than 1.84 kW
PRINTER TYPE W3601 (OPTION)
Controller type
Print speed
Printer resolution
Print size
Network protocol
Supported file formats
Supported environments
Interface
Print speed
Printer resolution
Print size
Network protocol
Supported file formats
Supported environments
Interface
Embedded
3.4/6.4 prints per minute (A0/A1)
Maximum: 600 dpi
Minimum210 x 257 mm
Maximum914 x 15,000 mm
TCP/IP, IPX/SPX (Auto switching available)
HPGL, HPGL2 (HPRTL), TIFF (CALS), Adobe® PostScript® 3™
Windows® 2000/XP/Vista/7/Server 2003/Server 2008, Mac OS X (OS X10.2 or later)
Standard Ethernet 10 base-T/100 base-TX, USB 2.0
Option Wireless LAN (IEEE 802.11b), Gigabit Ethernet
3.4/6.4 prints per minute (A0/A1)
Maximum: 600 dpi
Minimum210 x 257 mm
Maximum914 x 15,000 mm
TCP/IP, IPX/SPX (Auto switching available)
HPGL, HPGL2 (HPRTL), TIFF (CALS), Adobe® PostScript® 3™
Windows® 2000/XP/Vista/7/Server 2003/Server 2008, Mac OS X (OS X10.2 or later)
Standard Ethernet 10 base-T/100 base-TX, USB 2.0
Option Wireless LAN (IEEE 802.11b), Gigabit Ethernet
SCANNER TYPE W3601 (OPTION)
Scan speed
Resolution
Original size
Output formats
Bundled drivers
Scan to e-mail
Destination addresses
Stored destination addresses
Address book
Scan to folder
Destination
Scan to PDF
Resolution
Original size
Output formats
Bundled drivers
Scan to e-mail
Destination addresses
Stored destination addresses
Address book
Scan to folder
Destination
Scan to PDF
Maximum 80 mm per second
Maximum: 600 dpi (TWAIN: 150 - 1,200 dpi)
Maximum 914 x 15,000 mm
PDF/TIFF
Network TWAIN
SMTP, TCP/IP
Maximum 100 per job
Maximum 150
Via LDAP or locally on Hard Disk Drive
Via SMB, FTP or NCP protocol
Maximum 50 folders per job
Standard
Maximum: 600 dpi (TWAIN: 150 - 1,200 dpi)
Maximum 914 x 15,000 mm
PDF/TIFF
Network TWAIN
SMTP, TCP/IP
Maximum 100 per job
Maximum 150
Via LDAP or locally on Hard Disk Drive
Via SMB, FTP or NCP protocol
Maximum 50 folders per job
Standard
OTHER OPTIONS
- 2 Roll Feeder
- 250-sheet paper cassette (up to A3)
- Table
- Originals hanger
- Roll holder
- Rear stacker
- File Format Converter
- Browser Unit
- USB2.0/SD slot, Wireless LAN
- Extremely compact design.
- Optional colour scanner with variety of standard features.
- Very easy to use – large LCD touch-panel.
- Latest security features fully incorporated.
- Superb productivity: 4.4/6.4 ppm (A1) and 2.4/3.4 ppm (A0).
