A0 Plotter Printer Colour

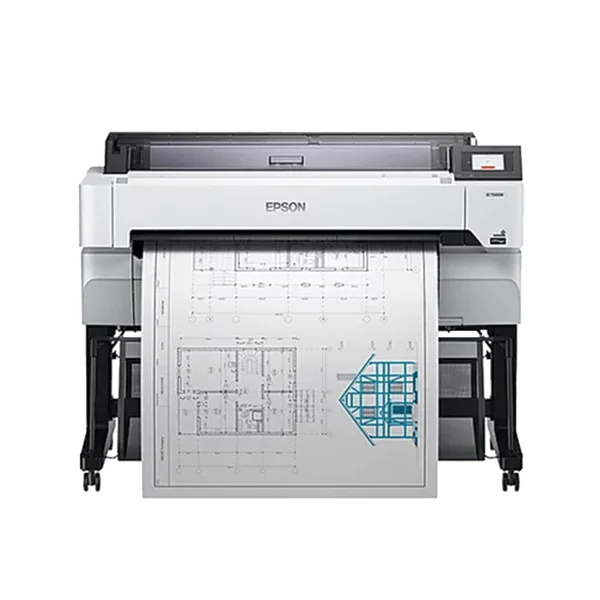

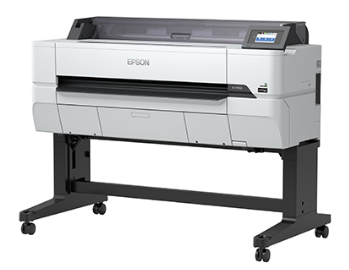

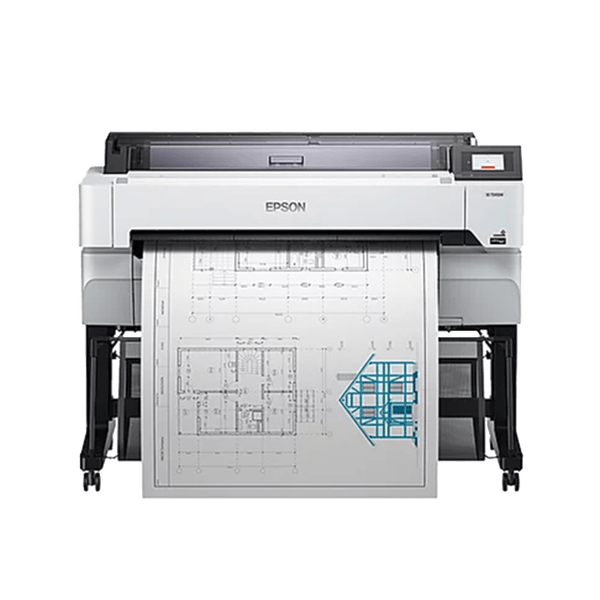

Epson SureColor SC-T5435
Enhance your ideas by showcasing them in a big way with stand-out performance, impeccable precision, and exceptional engineering. Devised for precision and reliability, Epson SureColor SC-T5435 comes with the PrecisionCore printheads and UltraChrome XD2 ink, now with bigger ink capacity, to help businesses go big on their plans.
- 22s per A1 printout (CAD Mode) - Fastest speed in T-Series line up
- Compact and user-friendly design
- Trusted productivity with built-in Wi-Fi
- Larger ink cartridge for higher print volume users
- Print width of up to 36”
- Specifications
- Brochure
- Video
|
Printing: |
Print Head:PrecisionCore TFP PrintheadNozzle Configuration:3,200 nozzles (800 nozzles x 4 channels x 1head)Maximum Print Resolution:2,400 x 1,200 dpiMinimum Ink Droplet Size:4.0 plLine Accuracy:±0.1% or ±0.26 mmMinimum Line Width:0.07 mm *1 (0.02 mm *2) |
|
Paper Handling: |
Media Thickness:Roll: 0.08 mm to 0.3 mm / Cutsheet: 0.08 mm to 0.3 mmMedia Type:Inkjet Coated Paper, Tracing Paper, Plain PaperSide Margin:Roll Paper: 3 mm (Borderless: 0 mm) Cut Sheet: 3 mm (Top) / 20 mm (Bottom) / 3 mm (Left/Right) [Borderless: 3 mm (Top) / 20 mm (Bottom) / 0 mm (Left/Right)]Borderless Print:YesMaximum Roll Diameter / Weight:2/3” Core, Max. 170 mm/12kgPaper Width:Roll: 254 mm to 914 mm Cutsheet: 210 mm to 914 mm |
|
Consumables: |
Black Ink Cartridge:110ml: C13T41Q500 350ml: C13T41D500 700ml: C13T41C500Cyan Ink Cartridge:110ml: C13T41Q200 350ml: C13T41D200 700ml: C13T41C200Magenta Ink Cartridge:110ml: C13T41Q300 350ml: C13T41D300 700ml: C13T41C300Yellow Ink Cartridge:110ml: C13T41Q400 350ml: C13T41D400 700ml: C13T41C400Maintenance Box:C13T699700Auto Cutter Spare Blade:C13S902007Borderless Replacement Pad Kit:C13S400064 |
|
Printer Width: |
Printer Width:36" |
|
Electrical Specifications: |
Rated Voltage, Frequency and Current:AC 100-240V, 50/60Hz, 2.8AElectric Power Consumption:Operating: Approx. 38W Ready: Approx. 13W Sleep: Approx. 1.3W Power Off: Approx. 0.25W |
|
Warranty: |
Warranty:3-years Warranty |
|
Environmental Conditions: |
Temperature:Operating: 10ºC - 35ºC, Storage: -20ºC - 40ºCHumidity:Operating: 20 - 80% (No Condensation), Storage: 5 - 85% (No Condensation)Sound Pressure:Operating: Approx. 49dB(A), Sleep: Approx. 32dB(A)Sound Power:Operating: Approx. 7.5B(A) |
|
Options: |
Roll Feed Spindle (36"):C12C933301 |
|
Print Speed: |
POP:36 sec (A0)CAD:22 sec (A1) |
|
Software Information: |
Supported OS:Windows XP SP3 or later / Vista / 7 / 8 / 8.1 / 10, Windows Server 2003 / 2008 / 2012 / 2016 / 2019, Mac OS X 10.6.8 or laterPrinter Management Tools:Epson Edge Dashboard, LFP Accounting Tool, Epson Device Admin, Epson Cloud Solution PORT |
|
Printer Dimensions and Weight (Without Ink): |
Dimensions With Stand (W x D x H):1,385 x 750 x 1,070 mmWeight With Stand:76 kg |
|
Connectivity: |
Memory: 1GB Interface: USB 3.0, Ethernet (100BASE-TX /1000BASE-T), Wi-Fi (IEEE802.11b/g/n) USB Direct: Yes Printer Languages : ESC/P raster HP-GL/2, HP RTL *3 Scanner Integration: Document Scanner Epson WorkForce DS-530, DS-6500, DS-60000 Business Inkjet Printers WF-R8591, WF-C869R, WF-C878R, WF-C879R, WF-C17590, WF-C20590, WF-C20600, WF-C20750, WF-C21000, WF-M20590 Wi-Fi Direct: Wi-Fi Direct (Simple AP) Control Panel: 4.3” Touch Screen |
