A1 Plotter Printer Colour

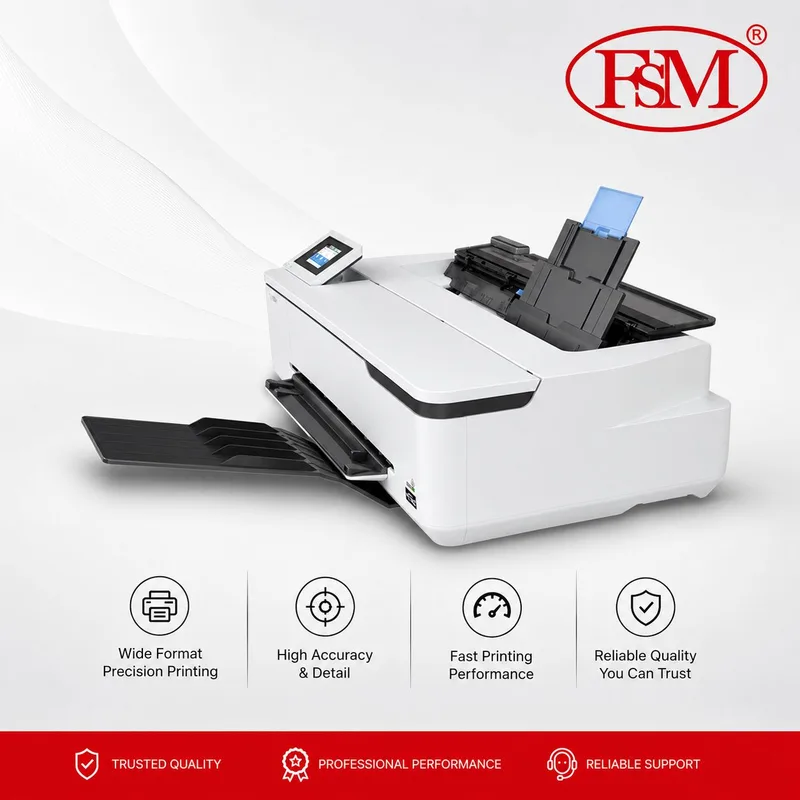

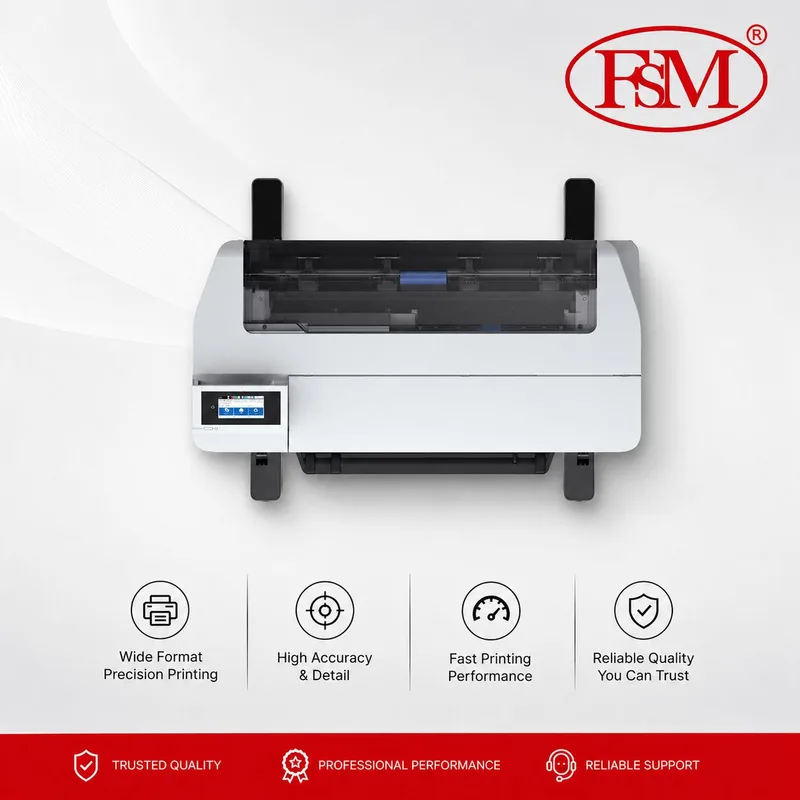

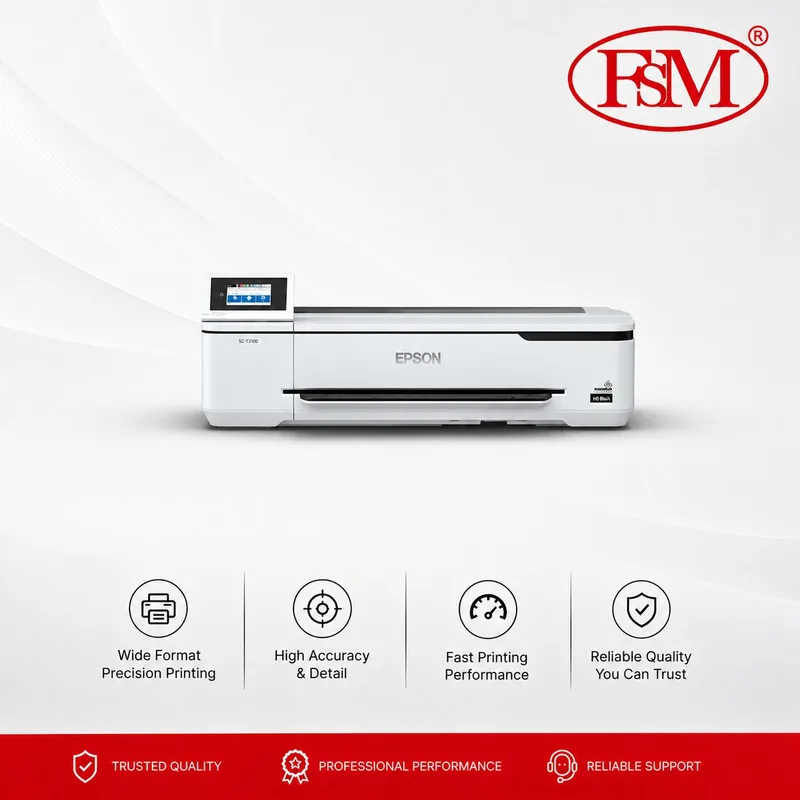

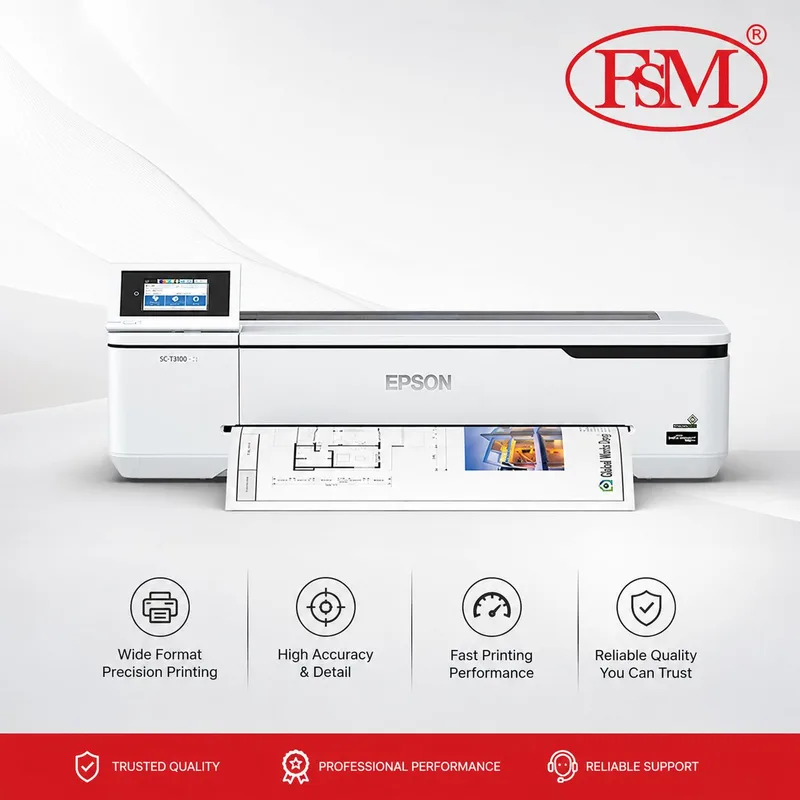

Epson SureColor SC-T3130N
Great performance packed into a compact size, the Epson SureColor SC-T3130N printer is engineered to enhance work processes. With the ability to print accurate line placements, it is the ideal printing solution for blueprints, line drawings, graphics, and posters. With the built-in wireless connectivity, print jobs can be sent effortlessly from smart devices. The Epson SureColor SC-T3130N is built to ensure fast printing speeds while delivering accuracy in every print. Share your vision and ideas clearly in your prints because the details, matter.
- Compact, User-friendly Design
- Advanced PrecisionCoreTM printhead
- Outstanding Speed & Quality
- Specifications
- Brochure
- Video
|
Printing: |
Printing Technology: Printhead: PrecisionCore TFP" Printhead 1.3" Nozzle Configuration: 3200 nozzles (800 nozzles x 4 channels x 1 head) Maximum Print Resolution: 2400 X 1200 dpi Minimum Ink Droplet Size: 4.0pl Print Speed: CAD(A1): 34 sec |
|
Roll Media Handling: |
Maximum Roll Diameter: 2" core Maximum Roll Weight: Max. 100 mm/3kg |
|
Ink: |
Ink Type: Epson UltraChrome XD2 Pigment Ink Colours: 4 Colours - Cyan, Magenta, Yellow, Black Ink Capacity: Cyan, Magenta, Yellow: 26ml, 50ml Black: 50ml , 80ml |
|
Printer Width: |
Printer Width: 24” |
|
Control Panel: |
Control Panel: 2.7 inch Colour LCD |
|
Consumables: |
Maintenance Box: Yes Auto Cutter Spare Blade: Yes |
|
Power: |
Power Consumption: Ready: Approx. 8W; Sleep: Approx. 1.6 W Operating: Approx. 28W Power Off: Approx 0.2W Requirement: AC 100-240V Frequency: 50/60Hz Recommended Operating Temperature & Humidity: Storage: 5 to 85% (no condensation) Operating: 20 to 80% (no condensation) |
|
General: |
Dimensions: 970 x 505 x 230 (WxDxH) Warranty: 3-years warranty Weight: 27kg (without ink cartridges) Memory: 1GB |
|
Connectivity: |
Included Software: Mac Setup Navi Windows Install Navi - Printer driver - EpsonNet Setup - EpsonNet Print - EpsonNet Config -Epson Software Updater - LFP Print Plug-in for Office - Epson manuals I/F: USB/LAN/WiFi Printer Interfaces: Super-Speed USB 100BASE-TX /1000BASE-T/IEEE802.11 b/g/n Printer Languages : ESC/P rasterHP-GU2, HP RTL Scanner Integration: Supports Epson Document Scanner Advanced Printer Driver: Crop/Rotate/Enlarge Tools |
|
Paper Handling: |
Maximum Paper Width: Cutsheet (1 sheet): 210 mm to 610 mm Roll: 329 mm to 610 mm Cutsheet (ASF): A4 to A3 Media Thickness: ASF/Cutsheet: 0.12 mm to 0.27 mm Roll: 0.05 mm to 0.21 mm Media Type: Inkjet Coated Paper, Tracing Paper, Plain Paper Side Margin: 3mm Auto-Sheet Feeder: Yes (Up to A3) |
