Color Digital Press Production Printer

For Art Card & Art Paper

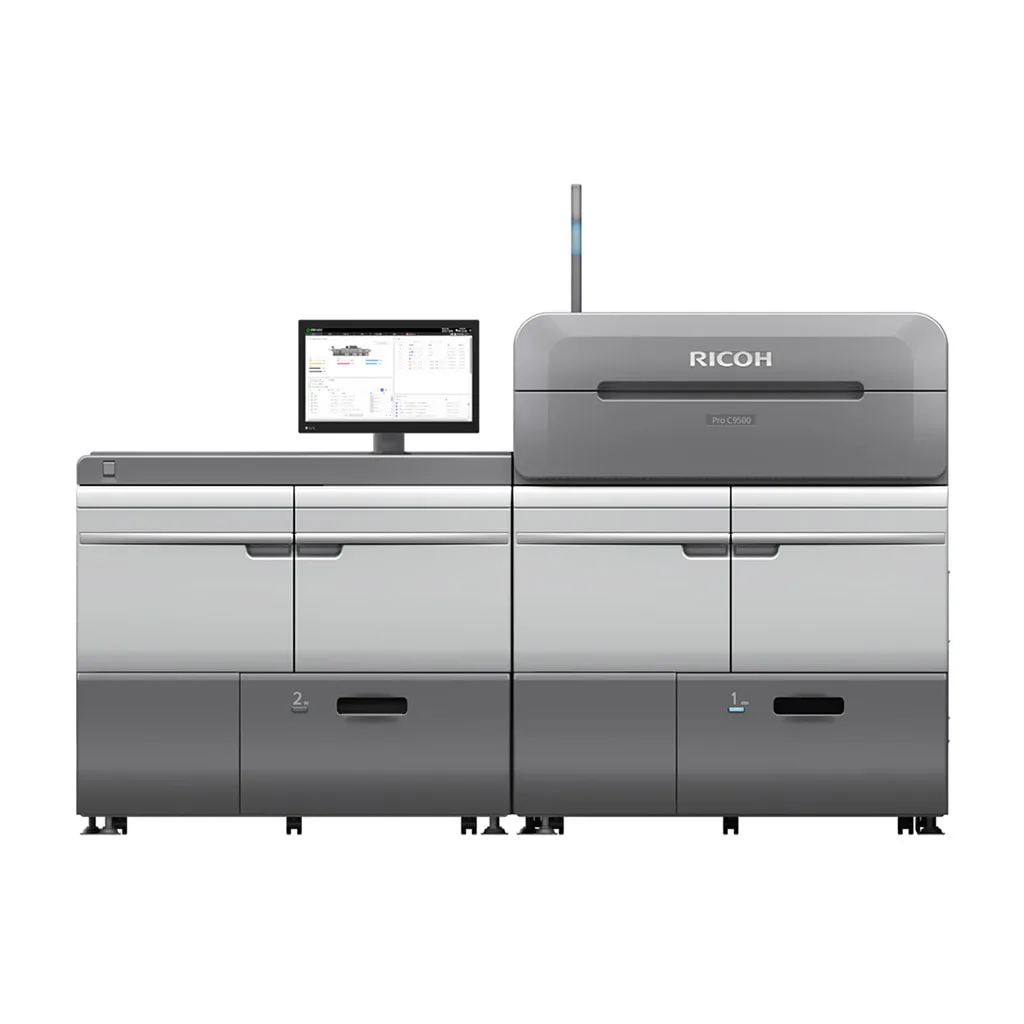

Ricoh Proc9500

Produce exceptional quality prints

Produce exceptional quality prints. Impress clients with vibrant, high quality prints at detailed 2,400 x 4,800 dpi resolution. And with Ricoh’s new Gloss Control feature, you can customize gloss levels to suit the application, whether it is for glossy photos or matte photo book printing.

Sophisticated control and consistency

Efficient operation

Gain better control over your operations with a new engine controller, large touchscreen panel, and new Digital Front End options that enable you to manage Ricoh and Fiery applications in one convenient place.

Power up your print speed

Increase the speed and agility your business by adding an optional productivity upgrade unit that boosts print speed to a blazing 135 ppm.

Expand your media horizons

Expand your business opportunities with support for a wide range of media types, sizes, and weights from 40 to 470 g/m2 and up to 0.6 mm thickness.

Simple setup and maintenance

Dramatically reduce job set up times with Ricoh's cloud-based media library and simplify maintenance tasks with remote connection, remote diagnosis, and remote service support.

Specifications
Brochure

General

Function(s)	Print
Colour	Yes
Printer controller - standard	RICOH GC OS
Printer controller - optional	Color Controller N-50 Color Controller N-70
Operation panel	21.5" Full HD touchscreen
Physical dimensions (W x D x H)—mainframe	2,520 x 990 x 1,500 mm
Physical dimensions (W x D x H)—other	2,520 x 990 x 1,870 mm—mainframe with Attention Light 1,054 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150 1,290 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150 with Vacuum-Feed Banner Sheet Tray Type S9 attached 1,519 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150 with Extension Vacuum-Feed Banner Sheet Tray Type S14 attached 330 x 730 x 1,000 mm—Bridge Unit BU5010 690 x 561 x 210 mm—Multi-Bypass Tray BY5020 1,290 x 730 x 1,000 mm—Vacuum-Feed Banner Sheet Tray Type S9 1,290 x 730 x 1,302 mm—Vacuum-Feed Banner Sheet Tray Type S9, with cover open 1,519 x 730 x 1,000 mm—Extension Vacuum-Feed Banner Sheet Tray Type S14, when attached to Vacuum-Feed LCIT RT5150 1,090 x 561 x 210 mm—Multi-Bypass Banner Sheet Tray Type S9, when attached to Multi-Bypass Tray BY5020 730 x 1,220 x 1,090 mm—Plockmatic LCT3500 2.0 1,113 x 730 x 1,490 mm—Finisher SR5110 1,334 x 730 x 1,622 mm—Finisher SR5110 with SR5000 Series Output Tray for Banner Sheet Type S6 1,876 x 730 x 1,617 mm—Finisher SR5110 with Extension Output Banner Sheet Tray Type S14 (installed on the upper tray) 1,926 x 730 x 1,617 mm—Finisher SR5110 with Extension Output Banner Sheet Tray Type S14 (installed on the lower tray) 1,113 x 730 x 1,490 mm—Booklet Finisher SR5120 1,334 x 730 x 1,622 mm—Booklet Finisher SR5120 with SR5000 Series Output Tray for Banner Sheet Type S6 1,876 x 730 x 1,617 mm—Booklet Finisher SR5120 with Extension Output Banner Sheet Tray Type S14 (installed on the upper tray) 1,926 x 730 x 1,617 mm—Booklet Finisher SR5120 with Extension Output Banner Sheet Tray Type S14 (installed on the lower tray) 1,115 x 591 x 555 mm—Trimmer Unit TR5050 740 x 730 x 1,350 mm—Cover Interposer CI5040 209 x 730 x 1,000 mm—Multi-Folding Unit FD5030 900 x 730 x 1,010 mm—High-Capacity Stacker SK5040 1,200 x 700 x 1,100 mm—Plockmatic High-Capacity Stacker HCI3500 900 x 680 x 1,060 mm—Plockmatic Multi-Purpose Stacker MPS1260 1,420 x 700 x 970 mm—Plockmatic PBM 5035S/PBM 5035, including stacker
Weight—mainframe	1,100 kg or less
Weight—other	230 kg or less—Vacuum-Feed LCIT RT5150 40 kg or less—Bridge Unit BU5010 20 kg or less—Multi-Bypass Tray BY5020 9 kg or less—Vacuum-Feed Banner Sheet Tray Type S9 23 kg or less—Extension Vacuum-Feed Banner Sheet Tray Type S14 9.5 kg or less—Multi-Bypass Banner Sheet Tray Type S9 250 kg—Plockmatic LCT3500 2.0 135 kg—Finisher SR5110 160 kg—Booklet Finisher SR5120 75 kg—Trimmer Unit TR5050 60 kg—Cover Interposer CI5040 45 kg or less—Multi-Folding Unit FD5030 131 kg or less—High-Capacity Stacker SK5040 135 kg or less—High-Capacity Stacker SK5040 with roll-away cart 250 kg—Plockmatic High-Capacity Stacker HCI3500 65 kg—Plockmatic Multi-Purpose Stacker MPS1260 lift unit 5 kg—Plockmatic Multi-Purpose Stacker MPS1260 docking unit
Minimum space requirements	1,000 mm—front 1,000 mm—left 1,000 mm—right 800 mm—rear

Reliability

Average monthly volume	115 ppm—251,000 prints (A4), 159,000 prints (click); 135 ppm—460,000 prints (A4), 304,000 prints (click)
Max monthly volume	1,000,000 prints
Machine life	60,000,000 prints or 5 years, whichever comes first
Duty cycle	115 ppm—2,250,000 prints; 135 ppm—2,600,000 prints
Color ratio	80%

Supply Yields

Supply yields

69,000 sheets—black
75,500 sheets—cyan
73,200 sheets—magenta
64,800 sheets—yellow
230,000 sheets per waste toner bottle
5,000 staples per Type X cartridge for Finisher SR5110 and Booklet Finisher SR5120—side staple
5,000 staples per Type U cartridge for Booklet Finisher SR5120—saddle stitch staple
5,000 staples per Type X refill cartridge for Finisher SR5110 and Booklet Finisher SR5120—side staple
5,000 staples per Type T refill cartridge for Booklet Finisher SR5120—saddle stitch staple
Note: Toner yields measured with the A4/8.75% coverage chart with 150 pages per job. Waste toner bottle yield measured with A4/8.75% coverage chart with 150 pages per job and 80% colour ratio.

Media Handling

Standard input capacity (sheets)	4,400
Maximum input capacity (sheets)	18,100
Maximum output capacity (sheets)	13,000
Paper input configuration - standard	2,200-sheet paper input tray x 2
Paper input configuration - optional	4,400-sheet Vacuum-Feed LCIT RT5150, Bridge Unit BU5010, 500-sheet Multi-Bypass Tray BY5020, 730-sheet Vacuum-Feed Banner Sheet Tray Type S9, 500-sheet Extension Vacuum-Feed Banner Sheet Tray Type S14, 500-sheet Multi-Bypass Banner Sheet Tray Type S9, 3,500-sheet Plockmatic LCT3500
Paper output configuration - optional	Multi-Folding Unit FD5030, High-Capacity Stacker SK5040, 3,500-sheet Booklet Finisher SR5120, 4,500-sheet Finisher SR5110, Punch Unit PU5030, Trimmer Unit TR5050 for Booklet Finisher SR5120, 400-sheet Cover Interposer CI5040
Paper output configuration - 3rd Party	GBC e-Wire, GBC StreamPunch Plus, Plockmatic HCI3500 High-Capacity Interposer, Plockmatic CT XL, Plockmatic PBM350e, Plockmatic MPS1260 Multi-Purpose Stacker, Plockmatic PBM5035S long sheet stitcher, Plockmatic 5035 long sheet stapler, Plockmatic SBT (Square Back Trimmer), Plockmatic RCT v.3.0
Supported media	*Standard paper input trays 1 and 2* Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Label Paper, Coated: High Gloss, Coated: Glossy, Coated: Matte, Envelope, Textured Paper, Tab Stock: Glossy, Tab Stock: Matte, Tab Stock: High Gloss, Envelope: Glossy, Envelope: Matte, Envelope: High Gloss, Carbonless Paper Note: Magnetic Paper, Metallic/Pearl Paper, Clear File Folder, and Synthetic Paper can be fed but quality is not guaranteed. *Bypass tray* Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Envelope Note: High Gloss, Coated: Glossy, Coated: Matte, Textured Paper, and Synthetic Paper can be fed but quality is not guaranteed. *Optional Vacuum-Feed LCIT RT5150* Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Label Paper, Coated: High Gloss, Coated: Glossy, Coated: Matte, Envelope, Textured Paper, Tab Stock: Glossy, Tab Stock: Matte, Tab Stock: High Gloss, Envelope: Glossy, Envelope Matte, Envelope: High Gloss, Carbonless Paper Note: Magnetic Paper, Metallic/Pearl Paper, Clear File Folder, and Synthetic Paper can be fed but quality is not guaranteed. Optional banner sheet tray Plain, Recycled, Prepunched Paper, Coated: High Gloss, Coated: Glossy, Coated: Matte, Textured Paper, Carbonless Paper Note: Transparency, Translucent Paper, Label Paper, Magnetic Paper, Metallic/Pearl Paper, and Synthetic Paper can be fed but quality is not guaranteed.
Maximum paper size	13" x 19.2"
Media weight (g/m2)	40–470

Connectivity

Interfaces - standard	10Base-T/100Base-Tx (Ethernet) 1000Base-T (Gigabit Ethernet)—for TotalFlow Advisor connection 2.5GBase-T—for Fiery controller connection SD slot x 2— for maintenance only USB 3.0 x 4, USB 2.0 x 2
Interfaces - optional	With Color Controller N-50 10Base-T/100Base-Tx (Ethernet) 1000Base-T (Gigabit Ethernet) USB 2.0 x 4—rear USB 3.0 x 5—2 ports on the rear, 3 ports on the Fiery Quick Touch operation panel With Color Controller N-70 10Base-T/100Base-Tx (Ethernet) 1000Base-T (Gigabit Ethernet) USB 3.0 x 7—rear USB 3.0 x 4 ports, x3 ports on the Fiery Quick Touch operation panel
Network protocols - standard	TCP/IP (IPv4, IPv6)
Network protocols - optional	With Color Controller N-50/N-70 Windows—TCP/IP Mac—TCP/IP, EtherTalk, Bonjour

Print Features

Print speed color	115 ppm—A4 62 ppm—A3 With optional Productivity Upgrade Unit Type S15 135 ppm—A4 75 ppm—A3
Print speed black and white	115 ppm—A4 62 ppm—A3 With optional Productivity Upgrade Unit Type S15 135 ppm—A4 75 ppm—A3
First print time	115 ppm—24 seconds; 135 ppm—22 seconds
Printing process	4-drum dry electrostatic transfer system with internal transfer belt
Printing technology	Vertical-cavity surface-emitting laser (VCSEL)
Fusing	Oil-less belt-fusing method
Toner development	PXP-EQ chemical toner, polymerization
Print resolution	2,400 x 4,800 dpi Note: Engine print resolution is 1,200 x 4,800 dpi.
Duplex printing	Standard
Envelope printing	Supported
Maximum printable area	326 x 1,255 mm
Optional printer controller	Color Controller N-50 and Color Controller N-70 System Fiery FS500 Pro Base operating system Windows 10 IoT Enterprise 2019 LTSC CPU Intel i5-8500—N-50 Intel Xeon 4214 (Silver)—N-70 HDD 256 GB SSD SATA for OS; 1 TB HD SATA for data—N-50 480 GB SSD SATA for OS; 2 TB HD x 2 SATA for data—N-70 Memory (RAM)8 GB—N-50 32 GB—N-70 Interfaces Gigabit cross cable Ricoh data transfer unit cable
Other print features	Optional Auto Color Diagnosis Unit and Image Quality Monitor

Security Features

Other security features

The OneDFE controller security is based on the EFI Fiery security policy that is compliant with the FS500 Pro system. Contact your local sales company for more information.

Software & Solutions

Standard	@Remote TotalFlow Adviser
Optional	InfoPrint Manager Ricoh ProcessDirector TotalFlow Prep TotalFlow Production Manager TotalFlow BatchBuilder RICOH Supervisor TotalFlow Producer FusionPro VDP Creator FusionPro Expression Ricoh Auto Color Adjuster OL PlanetPress Connect Fiery Workflow Suite

Environmental Features

Power source	220–240 V, 50/60 Hz
Power consumption	9,000 W or less—maximum power
Power consumption—options	1,000 W or less—Vacuum-Feed LCIT RT5150 150 W or less—Finisher SR5110 150 W or less—Booklet Finisher SR5120 250 W or less, maximum—Trimmer Unit TR5050 75 W or less, average—Trimmer Unit TR5050 110 W excluding peak consumption—Cover Interposer CI5040
Warm-up time	540 seconds or less—mainframe
Sound power level	*Mainframe* 73.5 dB or less—standby 81.5 dB or less—operating
Reduction of environmentally sensitive materials	*RoHS* Less than 0.1 wt%—Lead, PVC, Hexavalent chromium, Cadmium, PBB/PBDE, DEHP, DBP, BBP, DIBP
Energy saving standards	Energy Star 3.2—with OneDFE controller
Safety standards	EN60950-1 IEC60950-1 KC 62368-1 CNS 15998-1
Electromagnetic Compatibility (EMC) standards	EN55032 Class A EN61000-3-2 EN61000-3-3 EN55035 EN62311 KS C 9832 KS C 9835 KS C 9610-4-2 KS C 9610-4-3 CNS15936 Class A
Identification of plastic components	All plastic components that weigh more than 100 g are identified in accordance with ISO 11469 standards.
Laser standards	EN60825-1 IEC60825-1
