Epson EB-735Fi 3LCD Interactive Laser Projector
An advanced quality of classroom experience
Features and Benefit
The idea of replacing traditional whiteboards in schools with a massive, interactive, and immersive digital drawing board will no longer be simply a pipe dream. With the Epson EB-735Fi projector, users may quickly share information with other devices and create drawings using either two interactive pens or an optional six-point multi-touch. Teachers and students can directly manage the information displayed and exchanged on the clear Full-HD laser display thanks to the PC-less interactivity. The light source in this projector lasts up to 20,000 hours*4 without needing to be replaced, making it essentially maintenance-free.
- 3,600 lumens of color/white brightness*3
- Full HD 1080p* display; project 16:9 and 16:6 images
- 20,000-hour laser light source*4
- Time-saving installation
- Finger touch and pen interactivity
- Built-in Wireless
- Specifications
- Brochure
- Video
|
Projection Technology: |
Projection Technology: RGB liquid crystal shutter projection system |
|
Brightness: |
White Light Output (Normal / Eco): 3,600lm / 2,500lm*3 Colour Light Output: 3,600lm / 2,500lm*3 |
|

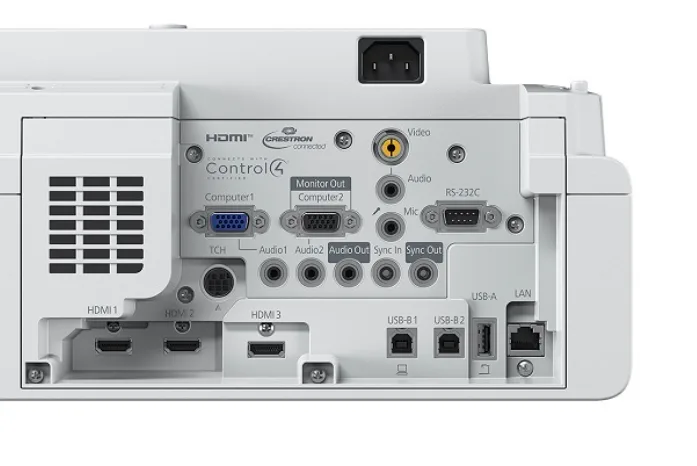

Connectivity: |
Network: Screen Mirroring (Built-in) Wireless: Optional (Using ELPAP11) Wired LAN: RJ45 x 1 (100Mbps) Analog Input: Composite: RCA x 1 (Yellow) D-Sub 15Pin: 2 (Blue, Black) Digital Input: HDMI: 3 (HDCP2.3) Output Terminal: D-Sub 15Pin: 1 (Black) (in common with Computer 2) Audio Input: Stereo Mini Jack: 3 Audio Output: Stereo Mini Jack: 1 Mic I/O: Stereo Mini x 1 Control I/O: RS-232C: D-Sub 9pin x 1 Interactive Sync: In x 1, Out x 1 Touch Unit Control: Mini DIN 8pin x 1 Others: USB Type B: 2 (for Firmware Update, Copy OSD Settings) USB Type A: 2 (for Saving and Reading Data via USB, Firmware Update, Copy OSD Settings) |
|
Contrast Ratio: |
Contrast Ratio: Over 2,500,000 : 1 |
|
Screen Size (Projected Distance): |
Screen Size (Projected Distance): 65” – 100” [37.2 – 58.3 cm] @ 16:9 60” – 110” [36.9 – 69.2 cm] @ 16:6 |
|
Geometric Correction: |
Vertical/Horizontal Keystone: ±3° / ±3° Quick Corner: Yes (Auto & Manual) |
|
Operating Temperature: |
Single Use: 0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [41 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation Over 2,286 - 3,048 m (7,500 - 10.000 ft): 0 - 35 °C [41 - 95 °F] ; 20%-80% Humidity, No Condensation Multi-projection Use: 0 - 2,286 m (0 - 7,500 ft): 0 °C - 35 °C [41 °F - 95 °F ; 20% to 80% Humidity, No Condensation Over 2,286 - 3,048 m (7,500 - 10,000 ft): 0 - 30 °C [41 - 86 °F] ; 20%-80% Humidity, No Condensation |
|
Operating Altitude: |
Operating Altitude: Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft) |
|
Start-Up Period: |
Start-Up Period: Less than 8 seconds, Warm-up Period: 30 seconds |
|
Cool Down Period: |
Cool Down Period: Instant Off |
|
Internal Speaker(s): |
Sound Output: 16W Monoaural |
|
Dimension Excluding Feet (W x H x D): |
Dimension Excluding Feet (W x H x D): 356 x 133 mm x 395 mm |
|
Weight: |
Weight: 5.8kg |
|
Air Filter: |
Type: Electrostatic Filter Maintenance Cycle: 12,000 hours *1 |
|
Fan Noise: |
Fan Noise (Normal / Eco): 36dB / 26dB |
|
Wireless LAN – Built-In: |
Supported Speed For Each Mode Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2 IEEE 802.11n (2.4GHz): 72.2Mbps*2, IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2 Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2, IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2 Supported Mode: Infrastructure, Access Point (Wi-Fi Direct) Wireless LAN Security: Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast Access Point (Wi-Fi Direct): WPA2-PSK (AES) |
|
Screen Mirroring – Built-In: |
Supported Speed For Each Mode Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*2, IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2, IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2 Access Point: (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*2, IEEE 802.11n (2.4GHz): 72.2Mbps*2, IEEE 802.11a (5GHz): 54Mbps*2, IEEE 802.11n (5GHz): 150Mbps*2, IEEE 802.11ac (5GHz): 325Mbps*2 Supported Mode: Infrastructure, Access Point (Wi-Fi Direct) |
|
Power: |
Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz |
|
Interactive Specification: |
Interactive Unit: Technology: Infrared Input Devices: Interactive Pen: Digital Pen (Easy Interactive Pen A & B) Finger: Yes (Up to 6 Fingers) [Optional] Connection To Computer: USB, Network Calibration: Pen: Auto / Manual (25 Points) Functions: Hover, Right Click, Auto Adjust Pen Area Pen Unit: Dimension: 161 x 24 mm (diameter) maximum Weight: 30g (Excluding a battery) Touch Unit : Maximum Dimension (D x W x H): 65 x 422 x 40 mm Weight: 600g |
|
Direct Power On / Off: |
Direct Power On / Off: Yes |
|
Specifications of Main Parts: |
LCD: Size: 0.59” (C2Fine) Resolution: Full HD (1080p)* Lightsource: Type: Laser Diode Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs Projection Lens: Type: No Optical Zoom / Focus (Manual) F-Number: 1.60 Focal Length: 3.7mm Zoom Ratio: 1.0 – 1.35 (Digital Zoom) Throw Ratio: 0.26 – 0.36 (Wide to Tele) |
